home products Optical Transceivers OSFP Transceivers 800G OSFP Transceivers from Coherent 800G (2x 400 FR4) OSFP Optical Transceiver
800G (2x 400 FR4) OSFP Optical Transceiver
Coherent | Finisar
FTCE4717E1PCB

800G (2x 400 FR4) OSFP Optical Transceiver

Manufacturer: Coherent | Finisar

Datasheet: FTCE4717E1PCB

Delivers to:

Delivers to Europe.

Contact us for volume discounts.

Status:

Authorised Distributors
Authorized Distributor
Stock
Stock Availability
Bulk Discounts
Volume Discounts
Support
Technical Support
Warranty
Includes Warranty

Product Detail

The FTCE4717E1PCB 2x400G-FR4 OSFP transceiver modules are engineered for Gigabit Ethernet links usage on a maximum of 2km of single mode fiber. They adhere to the OSFP MSA standards and parts of IEEE P802.3cu and P802.3ck. Digital diagnostic features are accessible through the I2C interface, in accordance with the OSFP MSA specifications.

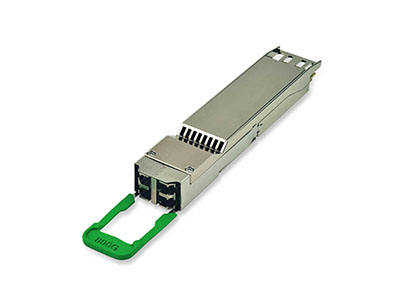

800G (2x 400 FR4) OSFP Optical Transceiver
https://www.epsglobal.com/getmetafile/5bccce15-48e8-4c8f-9003-d8274e575330/FTCE4717E1PxB?maxsidesize=400
2x400G-FR4 OSFP transceivers for Gigabit Ethernet links on up to 2km of single mode fiber, compliant with OSFP MSA and IEEE P802.3cu and P802.3ck, with digital diagnostic functions via I2C interface.
FTCE4717E1PCB
New
FTCE4717E1PCB
0.00
Coherent | Finisar
https://www.epsglobal.com/getmetafile/94cfad1c-656d-435e-8625-94600a97706c

Features & Benefits

  • Hot-pluggable OSFP Type 2 form factor with closed top heatsink
  • I2C management interface
  • Supports 2×425 Gb/s aggregate bit
  • Supports 2×400 FR4 and compatible with 2×200 FR4
  • Belly to Belly SMF LC Duplex
  • Case temperature range of 15°C to 70°C
  • Single 3.3V power supply
  • Aligned with IEEE 802.3cu
  • 8x100G PAM4 retimed 106.25 Gb/s PAM4 electrical interface aligned to IEEE 802.3ck
  • Top pull tab

Technical Specifications

ConnectorBBLC
Data Rate (max)850 Gb/s
DiagnosticsDigital
Distance500 m
High End Case Temperature (°C)70
Low End Case Temperature (°C)0
Protocol800G Ethernet Compatible, IB NDR
ReceiverPIN
TransmitterEML
Voltage Supply3.3
Wavelength1310nm

Resources

800G (2x 400 FR4) OSFP Optical Transceiver Datasheet
FTCE4717E1PCB Datasheet

FTCE4717E1PCB Datasheet
FTCE4717E1PCB Datasheet

2023 Optical Transceiver Guide
FTCE4717E1PCB Datasheet

800G OSFP FR4 Transceiver Demonstration
-->
