Product Detail

Introducing the ion12x_2 - Wi-Fi 7 Outdoor Access Point, the world's first open-source Wi-Fi 7 Access Point. This revolutionary product offers a concurrent dual-band data rate of up to 10.75 Gbps, supporting 1024 QAM and providing access to two simultaneous 160 MHz channels in the 5 GHz band. It supports up to 1536 concurrent users, making it ideal for high-density outdoor environments requiring low latency.

The ion12x_2 is equipped with enhanced security features such as WPA3 & WPA2 (Personal & Enterprise), and Enhanced Open security support. It also supports advanced features like non-Wi-Fi interference detection and avoidance, ATPC, and coverage hole detection and correction.

This Access Point is perfect for applications such as autonomous & connected cars, XR/MR applications, large enterprises, and shopping malls. It offers deployment flexibility through multiple variants, ensuring it can adapt to a wide range of needs.

The ion12x_2 also boasts a tri-radio offering a peak data rate of up to 10.75 Gbps, coordinated bi-directional multi-user-multi input multi-output (MU-MIMO), and multi-link operation (MLO). It also supports preamble puncturing and multiple resource unit (Multi-RU) operation, traffic share, and application awareness.

For enhanced networking, it offers better mesh networking and centralized control. The rugged enclosure provides enhanced protection, ensuring the ion12x_2 can withstand even the harshest outdoor conditions. Experience the future of outdoor Wi-Fi with the ion12x_2 - Wi-Fi 7 Outdoor Access Points.

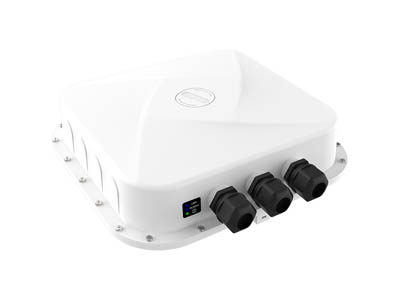

ion12x_2 - Wi-Fi 7 Outdoor APs
https://www.epsglobal.com/Media-Library/EPSGlobal/Products/files/hfcl/ion12x_2.jpg?ext=.jpg&maxsidesize=400
ion12x_2
New
ion12x_2
0.00
IO by HFCL
https://www.epsglobal.com/getmetafile/e01c3bd6-3939-48ed-99eb-3b73e59a69c8

Features & Benefits

  • World’s First Open source Wi-Fi 7 Access Point
  • Concurrent Dual-Band Offering Data Rate up to 10.75 Gbps
  • Provides deployment flexibility through Multiple Variants
  • Supports 1024 QAM
  • Access to 2 simultaneous 160 MHz channels in the 5 GHz Band
  • Supports 1536 concurrent users
  • Enhanced security features such as WPA3 & WPA2 (Personal & Enterprise), Enhanced Open security support
  • Support for advanced features like non-Wi-Fi interference detection and avoidance, ATPC, coverage hole detection and correction
  • Tri radio offering peak data rate of up to 10.75 Gbps
  • Coordinated Bi-Directional Multi User-Multi Input Multi Output (MU-MIMO)
  • Multi-Link Operation (MLO)
  • Preamble Puncturing and Multiple Resource Unit (Multi-RU) operation
  • Traffic Share and application aware
  • Better Mesh Networking
  • Centralized control
  • Rugged enclosure for enhanced protection

Technical Specifications

Antenna TypeIntegrated
EasyMeshYes
IP67Yes
Max Transmit Power29 dBm
Maximum Concurrent User Support1536
MU-MIMO4x4:4
OutdoorYes
Peak ThroughputUp to 10.75 Gbps
TechnologyWi-Fi 7
WPA2 SecurityYes
WPA3 SecurityYes
-->

Manufacturer

IO by HFCL

IO by HFCL's comprehensive set of products include a full range of Indoor and Outdoor WiFi5 and WiFi6 AccessPoints, P2P and P2mP Unlicensed Band Radios (UBR), Switches and a massively scalable Cloud Network Management System. The entire portfolio has been conceptualized, designed, developed and manufactured in India complying with global specifications with a sole objective to provide ubiquitous connectivity by delivering affordable, interoperable and high-quality wireless Access Solutions for all.
