ion4xl1_BTS - High Capacity P2MP UBR
IO by HFCL
ion4xl1_BTS

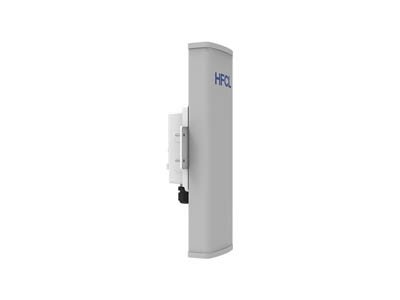

ion4xl1_BTS - High Capacity P2MP UBR

Manufacturer: IO by HFCL

Datasheet: ion4xl1_BTS

Delivers to:

Delivers to Europe.

Contact us for volume discounts.

Status:

Authorised Distributors
Authorized Distributor
Stock
Stock Availability
Bulk Discounts
Volume Discounts
Support
Technical Support
Warranty
Includes Warranty

Product Detail

Introducing the ion4xl1_BTS - High Capacity P2MP UBR, a master side device designed for high-capacity enterprise, electricity distribution grids, power plants, ISPs, TSPs, and smart cities. This high-capacity, feature-rich device operates on a 5GHz unlicensed band radio with a 1GbE port, offering a peak aggregated throughput of 1 Gbps at a channel bandwidth of 80MHz.

The ion4xl1_BTS supports up to 16 CPEs at a time, providing flexibility for both 2+0 and 1+1 deployment. It features 2x2 MIMO operation and multiple variants for diverse use cases. With high precision GPS sync technology, it allows the reuse of the same channel at collocated sites, and high transit power support of up to 30 dBm.

Ease of installation is a key feature of the ion4xl1_BTS, along with advanced level features, LED & buzzer support. The hardware is rugged with an IP67 rating, ensuring it can withstand harsh conditions. Adaptive RF technology, beamforming, and beam-steering enhance its performance and reliability.

Security is a priority with the ion4xl1_BTS, and remote management capabilities make it a convenient and efficient choice for various applications. Experience the power and versatility of the ion4xl1_BTS - High Capacity P2MP UBR today.

ion4xl1_BTS - High Capacity P2MP UBR
https://www.epsglobal.com/Media-Library/EPSGlobal/Products/files/hfcl/ion4xl1_BTS.jpg?ext=.jpg&maxsidesize=400
ion4xl1_BTS
New
ion4xl1_BTS
0.00
IO by HFCL
https://www.epsglobal.com/getmetafile/e01c3bd6-3939-48ed-99eb-3b73e59a69c8

Features & Benefits

  • 5GHz Unlicensed Band Radio with 1GbE Port
  • Peak aggregated throughput of 1 Gbps at channel bandwidth of 80MHz
  • High capacity, feature rich with 2x2 MIMO operation
  • Multiple variants for diverse use cases
  • Master BTS supports up to 16 CPEs at a time
  • Flexibility for both 2+0 and 1+1 deployment
  • High precision GPS sync technology allows reuse of same channel at collocated sites
  • High Transit Power support of up to 30 dBm
  • Ease of Installation
  • Advanced Level Features
  • LED & Buzzer Support
  • Rugged Hardware with IP67 rating
  • Adaptive RF Technology
  • Beamforming and Beam-Steering
  • Security
  • Remote Management

Technical Specifications

Antenna TypeIntegrated
IP67Yes
Max Transmit Power30 dBm
MU-MIMO2x2:2
OutdoorYes
Peak ThroughputUp to 1 Gbps
TechnologyHigh Capacity P2MP UBR (Master Side)
WPA2 SecurityYes
WPA3 SecurityYes
-->

Manufacturer

IO by HFCL

IO by HFCL's comprehensive set of products include a full range of Indoor and Outdoor WiFi5 and WiFi6 AccessPoints, P2P and P2mP Unlicensed Band Radios (UBR), Switches and a massively scalable Cloud Network Management System. The entire portfolio has been conceptualized, designed, developed and manufactured in India complying with global specifications with a sole objective to provide ubiquitous connectivity by delivering affordable, interoperable and high-quality wireless Access Solutions for all.
