Sensors

AFBR-S50MX85I - Time-of-Flight Sensor Module for Distance and Motion Measurement

https://www.epsglobal.com/getmetafile/738546fd-d0d8-40ad-8a51-f7ef73b0efb1/AFBR-S50MX85I?maxsidesize=400

The AFBR-S50MX85I sensor has been developed with a special focus on industrial sensing applications for short to medium distances of typical up to 8m. Examples are high resolution surveillance, motion and gesture sensing. The module has an integrated 850 nm laser light source and due to a 13°x6° emission cone, it can use all 32 pixels simultaneously, independent of the object distance.

AFBR-S50MX85I

AFBR-S50MX85I

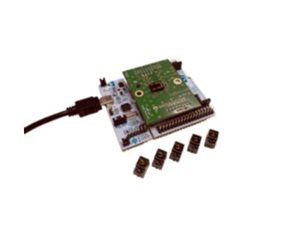

AFBR-S50-FEK - Evaluation Kit for Time-of-Flight Sensor Modules AFBR-S50xxxxx

https://www.epsglobal.com/getmetafile/c6d4b6a4-1184-4775-b37e-81ab206be93b/AFBR-S50-FEK?maxsidesize=400

The AFBR-S50-FEK TOF evaluation kit contains all hardware needed to immediately start working with the Broadcom AFBR-S50 multipixel TOF sensors. It comes with all members of Broadcom’s TOF sensors family which can be easily plugged into the sensor socket on the adapter board. The sensors’ FOVs range from 0.4° x 0.4° to 13° x 6° while the typical achievable distances range 10mm to 50m and beyond depending on the type. The sensor works well in all light situations from completely dark up to blue sunny sky (100klux) outdoors and above. This, while the sensor firmware takes care of maintaining laser class 1 in all situations. The family evaluation kit is composed of an ARM Cortex M4 microcontroller board, an adapter board with a socket for the sensors to be plugged in, an USB cable for establishing a serial connection to the PC and delivering a 5V single power supply. An SDK can be retrieved from the download section of this product website and provides the API in C-code language and a comprehensive and easy-to-use graphical user interface (GUI) allowing users to immediately start evaluating the sensor for the target application. The documentation includes a getting started guide and an API reference manual (available via help section in the Explorer) for the final system integration.

AFBR-S50-FEK

AFBR-S50-FEK

AFBR-S6DPYEFL01 - Evaluation kit for ezPyro thin film digital (SMD) I²C pyroelectric sensors for flame detection

https://www.epsglobal.com/Media-Library/EPSGlobal/Products/files/Broadcom/AFBR-S6DPYEFL01.jpg?ext=.jpg&maxsidesize=400

The AFBR-S6DPYEFL01 is an evaluation kit for ezPyro SMD sensors, featuring PC connectivity via micro-USB and four SMDs for flame detection.

AFBR-S6DPYEFL01

AFBR-S6DPYEFL01

AFBR-S6DPYEGA01 - Evaluation kit for ezPyro thin film digital (SMD) I²C pyroelectric sensors for gas detection

https://www.epsglobal.com/Media-Library/EPSGlobal/Products/files/Broadcom/AFBR-S6DPYEGA01.jpg?ext=.jpg&maxsidesize=400

The AFBR-S6DPYEGA01 is an evaluation kit for ezPyro SMD sensors, featuring micro-USB connectivity and two SMDs for CO2 detection.

AFBR-S6DPYEGA01

AFBR-S6DPYEGA01

AFBR-S6DPYEBB01 - ezPyro thin film digital SMD backplane boards

https://www.epsglobal.com/Media-Library/EPSGlobal/Products/files/Broadcom/AFBR-S6DPYEBB01.jpg?ext=.jpg&maxsidesize=400

The AFBR-S6DPYEBB01 is a Broadcom ezPyro Backplane Board that can host up to four ezPyro SMD Breakout Boards for immediate infrared sensor signal measurements in various applications.

AFBR-S6DPYEBB01

AFBR-S6DPYEBB01

AFBR-S6PY2341 - Thin film analog pyroelectric single-channel IR sensor with 4.64 µm bandpass filter for flame detection

https://www.epsglobal.com/Media-Library/EPSGlobal/Products/files/Broadcom/AFBR-S6PY2341.jpg?ext=.jpg&maxsidesize=400

The AFBR-S6PY2341 is a high-responsivity, thin film pyroelectric infrared flame detector from Broadcom, featuring a wide field of view, rapid recovery, and excellent signal-to-noise ratio in the 8-10 Hz flicker range.

AFBR-S6PY2341

AFBR-S6PY2341

AFBR-S6PY0575 - Thin film analog pyroelectric single-channel IR sensor with 3.91 µm bandpass filter for flame detection

https://www.epsglobal.com/Media-Library/EPSGlobal/Products/files/Broadcom/AFBR-S6PY0575.jpg?ext=.jpg&maxsidesize=400

The AFBR-S6PY0575 is a high-responsivity, thin film pyroelectric infrared flame detector from Broadcom, offering rapid recovery, a wide field of view, and excellent signal-to-noise ratio in the 8-10 Hz flicker range.

AFBR-S6PY0575

AFBR-S6PY0575

AFBR-S6PY1601 - Thin film analog pyroelectric single-channel IR sensor with 5.00 µm bandpass filter for flame detection

https://www.epsglobal.com/Media-Library/EPSGlobal/Products/files/Broadcom/AFBR-S6PY1601.jpg?ext=.jpg&maxsidesize=400

The AFBR-S6PY1601 is a high-responsivity, thin film pyroelectric infrared flame detector from Broadcom, featuring a wide field of view, rapid recovery, and excellent signal-to-noise ratio for accurate flame detection.

AFBR-S6PY1601

AFBR-S6PY1601

AFBR-S6PY0234 - Thin film analog pyroelectric dual-channel sensor with a 3.91 µm / 90 nm filter and a 4.26 µm / 180 nm filter for CO2 detection

https://www.epsglobal.com/Media-Library/EPSGlobal/Products/files/Broadcom/AFBR-S6PY0234.jpg?ext=.jpg&maxsidesize=400

The AFBR-S6PY0234 is a high-performance, dual detector pyroelectric infrared sensor from Broadcom, designed for CO2 detection with exceptional responsivity and stability.

AFBR-S6PY0234

AFBR-S6PY0234

AFBR-S6PY2486 - Thin film analog pyroelectric dual-channel sensor with a 3.91 µm / 90 nm filter and a 3.33 µm / 160 nm filter for H-C detection

https://www.epsglobal.com/Media-Library/EPSGlobal/Products/files/Broadcom/AFBR-S6PY2486.jpg?ext=.jpg&maxsidesize=400

The AFBR-S6PY2486 is a high-performance, dual-channel pyroelectric IR sensor from Broadcom, designed for gas detection and substance concentration measurements, with exceptional stability and a signal-to-noise ratio of ~10,000.

AFBR-S6PY2486

AFBR-S6PY2486
