Infrared Emitters

Thermal infrared emitter with gold plated reflector Package: TO-39/TO-5 with integrated reflector TO39-Cap without window Emitter area 11 mm²HISbasic series emitters have an integrated gold plated reflector that directs the radiation emitted from the rear to the front in order to achieve maximum efficiency. All our emitters offer minimum drift at constant resistance (Ohm). Infrasolids IR emitters are characterized by a very low temperature coefficient of electrical resistance. Therefore the hot resistance and the cold resistance are almost identical which eases the electrical control of the IR sources.

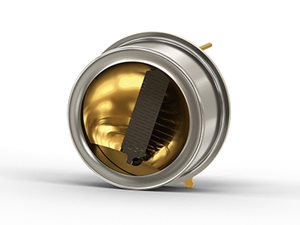

Thermal infrared emitter with gold plated reflector Package: TO8 with integrated reflector TO8-Cap without window Emitter area: 40 mm²HISpower series emitters are powerful and high-efficient infrared sources that are used in high-precision and stationary gas detection and gas monitoring (e.g. CO, CO2, NO, SO2, VOC, hydrocarbons), in infrared spectroscopy and as calibration source. These pulsable thermal infrared sources feature a very high radiant power in the entire infrared spectral range due to the large emitter area and the high and broadband emissivity. The radiation element is coated on both sides with the nanostructured emission layer. An integrated reflector directs the backside emitted radiation to the front through the housing window. Thus, a maximum optical output power and a maximum efficiency can be achieved. Infrasolid’s hermetic housing technology enables soldered sapphire, CaF2 and BaF2 windows for use in harsh environments and a wide temperature range of -25 °C up to +85 °C.

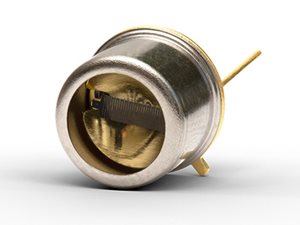

Thermal infrared emitter with sapphire window and Argon gas filling Package: TO-39/TO-5 with integrated reflector TO39-Cap with soldered sapphire window Emitter area 11 mm² Hermetically sealed: tested to 10-8 mbar*l/s Filling: ArgonHISbasic series emitters have an integrated reflector that directs the radiation emitted from the rear to the front in order to achieve maximum efficiency. Our open emitters offer high performance for a wide spectral measuring range.

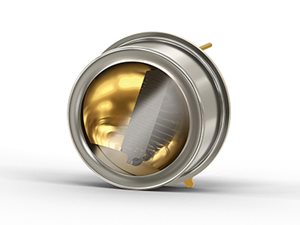

Thermal infrared emitter with sapphire window, hermetically sealed Package: TO8 with integrated reflector TO8-Cap with soldered sapphire window, cap height 6.375 mm Emitter area: 40 mm² Hermetically sealed: tested to 10-8 mbar*l/s Filling: NitrogenHISpower series emitters are powerful and high-efficient infrared sources that are used in high-precision and stationary gas detection and gas monitoring (e.g. CO, CO2, NO, SO2, VOC, hydrocarbons), in infrared spectroscopy and as calibration source. These pulsable thermal infrared sources feature a very high radiant power in the entire infrared spectral range due to the large emitter area and the high and broadband emissivity. The radiation element is coated on both sides with the nanostructured emission layer. An integrated reflector directs the backside emitted radiation to the front through the housing window. Thus, a maximum optical output power and a maximum efficiency can be achieved. Infrasolid’s hermetic housing technology enables soldered sapphire, CaF2 and BaF2 windows for use in harsh environments and a wide temperature range of -25 °C up to +85 °C.

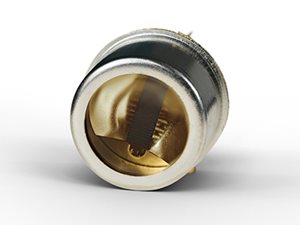

Thermal infrared emitter with sapphire window, hermetically sealed Package: TO8 with integrated reflector TO8-Cap with soldered sapphire window, cap height 9.525 mm Emitter area: 40 mm² Hermetically sealed: tested to 10-8 mbar*l/s Filling: NitrogenHISpower series emitters are powerful and high-efficient infrared sources that are used in high-precision and stationary gas detection and gas monitoring (e.g. CO, CO2, NO, SO2, VOC, hydrocarbons), in infrared spectroscopy and as calibration source. These pulsable thermal infrared sources feature a very high radiant power in the entire infrared spectral range due to the large emitter area and the high and broadband emissivity. The radiation element is coated on both sides with the nanostructured emission layer. An integrated reflector directs the backside emitted radiation to the front through the housing window. Thus, a maximum optical output power and a maximum efficiency can be achieved. Infrasolid’s hermetic housing technology enables soldered sapphire, CaF2 and BaF2 windows for use in harsh environments and a wide temperature range of -25 °C up to +85 °C.

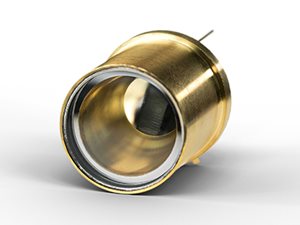

Thermal infrared emitter with Winston Cone and CaF2 window, hermetically sealed Package: TO8 with integrated reflector TO8-Cap with Winston-Cone and soldered CaF2-Window Emitter area: 40 mm² Hermetically sealed: tested to 10-8 mbar*l/s Filling: NitrogenHISpower series emitters are powerful and high-efficient infrared sources that are used in high-precision and stationary gas detection and gas monitoring (e.g. CO, CO2, NO, SO2, VOC, hydrocarbons), in infrared spectroscopy and as calibration source. These pulsable thermal infrared sources feature a very high radiant power in the entire infrared spectral range due to the large emitter area and the high and broadband emissivity. The radiation element is coated on both sides with the nanostructured emission layer. An integrated reflector directs the backside emitted radiation to the front through the housing window. Thus, a maximum optical output power and a maximum efficiency can be achieved. Infrasolid’s hermetic housing technology enables soldered sapphire, CaF2 and BaF2 windows for use in harsh environments and a wide temperature range of -25 °C up to +85 °C.

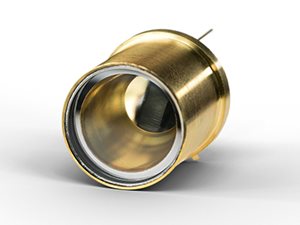

Thermal infrared emitter with Winston Cone and BaF2 window, hermetically sealed Package: TO8 with integrated reflector TO8-Cap with Winston-Cone and soldered BaF2-Window Emitter area: 40 mm² Hermetically sealed: tested to 10-8 mbar*l/s Filling: NitrogenHISpower series emitters are powerful and high-efficient infrared sources that are used in high-precision and stationary gas detection and gas monitoring (e.g. CO, CO2, NO, SO2, VOC, hydrocarbons), in infrared spectroscopy and as calibration source. These pulsable thermal infrared sources feature a very high radiant power in the entire infrared spectral range due to the large emitter area and the high and broadband emissivity. The radiation element is coated on both sides with the nanostructured emission layer. An integrated reflector directs the backside emitted radiation to the front through the housing window. Thus, a maximum optical output power and a maximum efficiency can be achieved. Infrasolid’s hermetic housing technology enables soldered sapphire, CaF2 and BaF2 windows for use in harsh environments and a wide temperature range of -25 °C up to +85 °C.

Thermal infrared emitter with CaF2 window, hermetically sealed Package: TO8 with integrated reflector TO8-Cap with glued CaF2-window, cap height 6.375 mm Hermetically sealed: tested to 10-8 mbar*l/s Filling: Nitrogen Emitter area: 40 mm²HISpower series emitters are powerful and high-efficient infrared sources that are used in high-precision and stationary gas detection and gas monitoring (e.g. CO, CO2, NO, SO2, VOC, hydrocarbons), in infrared spectroscopy and as calibration source.

Thermal infrared emitter with CaF2 window, hermetically sealed Package: TO8 with integrated reflector TO8-Cap with glued CaF2-window, cap height 9.525 mm Hermetically sealed: tested to 10-8 mbar*l/s Filling: Nitrogen Emitter area: 40 mm²HISpower series emitters are powerful and high-efficient infrared sources that are used in high-precision and stationary gas detection and gas monitoring (e.g. CO, CO2, NO, SO2, VOC, hydrocarbons), in infrared spectroscopy and as calibration source.

Thermal infrared emitter, gold plated package Package: SMD3 without window Emitter area: (0.4 x 0.8) mm²  HISsmd series emitters are small, powerful infrared radiation sources that meet the demands for reliable miniaturized gas sensors and offer a wide range of new application scenarios. The low energy consumption, the high efficiency and the small size allow the use in portable, battery-powered, and mobile applications. These innovative infrared light sources are used, for instance, in respiratory gas analysis, e.g. for the detection of CO₂ and breath alcohol, and in Smart Home and Smartphone applications. The pioneering SMD package enables a fully automated production in high-volume markets.
