40G Data Center Switch
Quantity breaks available. View Pricing Table
Product Detail
The Edge-Core AS6700-32X switch is a Top-of-Rack (TOR) or spine switch for high-performance data centers. In a compact 1RU form factor, the switch provides line-rate L2 and L3 switching across up to 32 x QSFP ports, supporting up to 32 x 40 GbE connections or 104 x 10 GbE connections. The AS6700-32X can be deployed as a TOR switch supporting 10 GbE or 40 GbE server connections, or as a spine switch, supporting 10 GbE or 40 GbE spine interconnects. The switch provides 20 fixed QSFP ports and two module slots, each capable of supporting a 6 x QSFP option module or a future NPU module for application processing. The AS6700-32X is a bare-metal switch loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible independent switchOS offerings.
Compatible Operating Systems
Pricing Table
Technical Specification
- Cost-effective, bare-metal switch infrastructure for data center fabric.
- Up to 32 x 40GbE ports in compact 1RU form factor.
- Modular design allowing cost-effective build-out of an infrastructure with switching capacity added as required.
- 20 x QSFP switch ports, each supporting 40 GbE or 4 x 10 GbE via breakout cables.
- Two module slots, each supporting 6 x QSFP module or future NPU processing module.
- Layer 2 or Layer 3 forwarding of 2.56 Tbps full duplex.
- Supports hot/cold aisle with port-to-power and power-to-port airflow SKUs.

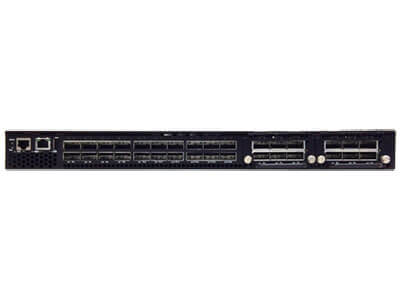

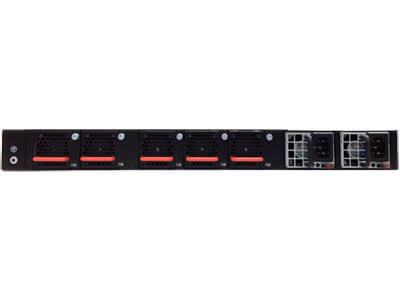

- All ports on front; PSUs and fans on rear.
- Hot-swappable, load-sharing, redundant AC or -48V DC PSUs.
- 4+1 redundant, hot-swappable fans.
- Energy Efficiency: 267 W typical power consumption.
- Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible independent switchOS software.
- AS6701 SKUs compatible with Cumulus®Linux® r2.0.1 and later switchOS software from Cumulus Networks™.
- AS6700 SKUs compatible with Switch Light OS from Big Switch Networks.
Additional Documentation
Manufacturer
Edgecore
Edgecore Networks Corporation is a wholly-owned subsidiary of Accton Technology Corporation, the leading network ODM. Edgecore Networks delivers wired and wireless networking products and solutions through channel partners and system integrators worldwide for data center, service provider, enterprise, and SMB customers.
