Optical Transceivers

name

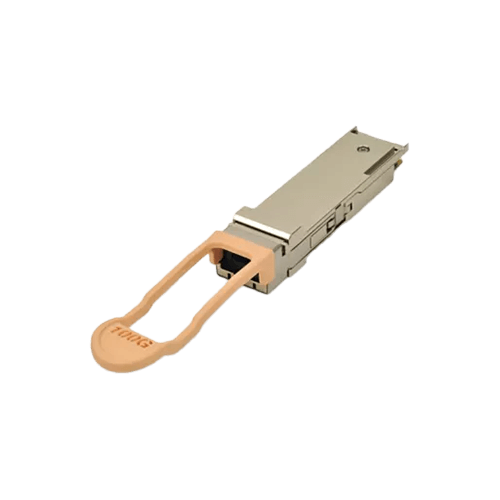

Optical Transceivers

For over 30 years, Finisar has been a global technology leader in optical communications. Their optical products span all Ethernet data rates currently deployed, from 100Mb/s to 400Gb/s. Their QSFP products support link distances of up to 400 meters over multimode fiber, well beyond the IEEE Ethernet standard. Finisar's transceivers also support distances over single mode fiber of up to 20km on 100G QSFP28, 40km on 40G QSFP+ and 80km on 10G SFP+.

Finisar is a global technology leader in optical communications. Their world-class products enable high-speed voice, video and data communications for networking, storage, wireless, and cable TV applications.

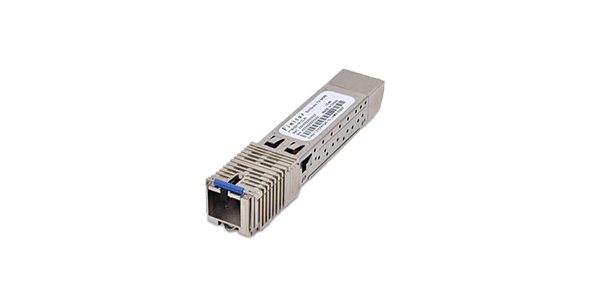

SFP TRANSCEIVERS

Copper and optical; longwave, shortwave and WDM SFP optical transceivers. Datacom applications using Fast Ethernet, Gigabit Ethernet, 1x/2x/4x Fibre Channel. Telecom applications using OC-3/STM-1, OC-12/STM-4, OC-48/STM-16, EPON/GPON and Wireless/CPRI across all reaches. Features include a 3.3 V operating voltage, distances from very short links up to 100+ km, and a wide operating temperature range.

Show me products

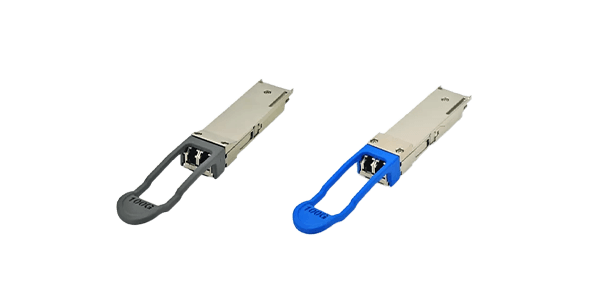

QSFP+/QSFP28 TRANSCEIVERS

Optical; longwave and shortwave QSFP+ and QSFP28 transceivers. Datacom applications using 40G and 100G Ethernet and high-density 10G and 25G Ethernet. Telecom applications using OTU3 and OTU4. Features include: four-channel full-duplex transceiver module; maximum link length of 300m on OM3 MMF, 400m on OM4 MMF, and 40 km on SMF; and wireless CPRI compliant (LW and SW).

Show me products

CXP

Optical; shortwave CXP transceivers. Datacom applications using 100G Ethernet and chassis interconnections. Features include a twelve-channel full-duplex transceiver module, and a maximum link length of 300m on OM3 MMF and 400m on OM4 MMF.

Show me products

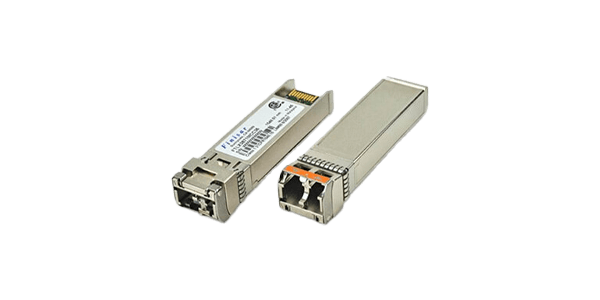

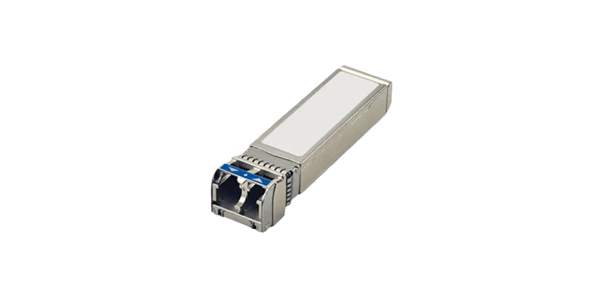

SFP+/SFP28 TRANSCEIVERS

Optical; longwave, shortwave, DWDM and tunable SFP+/SFP28 transceivers. Datacom applications using 10G and 25G Ethernet and 2x/4x/8x/10x/16x/32x Fibre Channel (LW and SW) Telecom applications using either OC-192/STM-64, 10G Ethernet, or Wireless/CPRI. Features include a 3.3 V operating voltage, support for bit rates up to 28.05 Gb/s (LW, SW, and DWDM) and 11.3 Gb/s (Tunable), and distances from short links up to 80km metro (LW, SW, and DWDM) and 80km (Tunable).

Show me products

CFP TRANSCEIVERS

Optical; longwave and shortwave CFP, CFP2, CFP4, and CFP8 transceivers. Datacom applications using 100G and 400G Ethernet. Telecom applications using OTU4. Features include support for 103.1 Gb/s to 425 Gb/s aggregate bit rates; maximum link length of 100m on OM3 MMF, 150m on OM4 MMF, 10km on SMF; and a 3.3 V operating voltage.

Show me products

XFP TRANSCEIVERS

Optical; longwave, shortwave, DWDM, and tunable XFP transceivers. Datacom applications using 10G Ethernet and 10x Fibre Channel. Telecom applications using OC-192/STM-64. Features include: support for bit rates of up to 11.3 Gb/s; distances up to 200 km (LW, SW, and DWDM) and 80 km (Tunable); digital diagnostics; and wide operating temperature range versions available.

Show me products

Endurance Compact Transceivers

Optical; longwave and shortwave endurance compact transceivers. Features include data rate flexibility including 1G and 10G Ethernet, Fast Ethernet, and 1x/2x/4x/8x/16x Fibre Channel; board-mounted for an edge optical interface or internal mounting; and designed for rugged applications.

Show me products

Optical Transceiver Benefits

Increase Density and Consume Less Power
Extend your Data Center Reach
Readily available - We hold stock!
Data rates of up 400G
