64-Port, 25/100GE Open Aggregation Router
64-Port, 25/100GE Open Aggregation Router
64-Port, 25/100GE Open Aggregation Router
ufiSpace
S9600-64X

64-Port, 25/100GE Open Aggregation Router

Manufacturer: ufiSpace

Datasheet: S9600-64X

Delivers to:

Delivers to Europe.

Contact us for volume discounts.

Status:


Authorized Distributor

Stock Availability

Volume Discounts

Technical Support

Includes Warranty

Product Detail

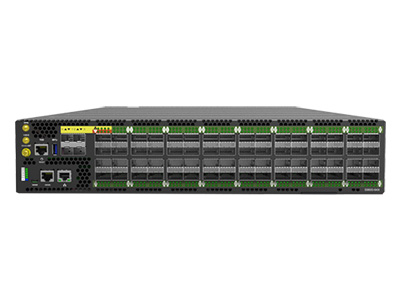

The UfiSpace S9600-64X Open Aggregation Router, is a high density and multi-function white box aggregation routing platform. It utilizes the Broadcom Qumran2c merchant silicon and Intel Skylake processor to enable high capacity, better power efficiency and more buffering within a compact 2RU router.

The S9600-64X provides 8GB deep buffer, a switching capacity of up to 4.8Tbs, and fully supports SyncE and IEEE 1588v2 timing profiles. Specializing in 5G Time Sensitive Networking (TSN) applications, the S9600-64X complies to the IEEE 802.1CM and can act as an Edge Grand Master (GM) clock. Furthermore, it can provide Class C timing accuracy using UfiSpace's in-house designed 5G timing module. It features 64 high speed 100GE ports with an additional 4x25GE ports that is a break out of port #0.

The S9600-64X platform can enable multiple application architectures required for high traffic loading in a 5G mobile Ethernet network. Due to its versatility, the S9600-64X can be positioned in different parts of the network to perform aggregation, such as in the backhaul to aggregate BBU pooling or even as a Broadband Network Gateway (BNG) within the central office.

64-Port, 25/100GE Open Aggregation Router
https://www.epsglobal.com/getmetafile/06225bd3-f53b-4ec9-a49a-937497c8517f/S9600-64X-1?maxsidesize=400

The UfiSpace S9600-64X Open Aggregation Router, is a high density and multi-function white box aggregation routing platform. It utilizes the Broadcom Qumran2c merchant silicon and Intel Skylake processor to enable high capacity, better power efficiency and more buffering within a compact 2RU router.

S9600-64X
New
S9600-64X
ufiSpace
https://www.epsglobal.com/getmetafile/d12990ae-2a23-456e-8f8c-1604875b0cc9

Pricing Table

Technical Specification

Ports:
64
Data Rate:
25/100G
Predominant Port Type:
QSFP28
Features:
  • High density, Multi-function Aggregation Router
  • Supports SyncE and IEEE 1588
  • 64x 40G/100G QSFP28 ports
  • 4x 1G/10G/25G SFP28 ports
  • 1x RJ45 serial console port
  • 1x Micro USB serial console port
  • 1x 1000 Base-T Ethernet port for Out-of-Band management
  • 1x USB 3.0 Type-A general purpose port
