LAN9514 - USB 2.0 to 10/100/1000 Ethernet Bridge with 4-port USB 3.1 Hub
Microchip
LAN9514

LAN9514 - USB 2.0 to 10/100/1000 Ethernet Bridge with 4-port USB 3.1 Hub

Manufacturer: Microchip

Datasheet: LAN9514

Delivers to:

Delivers to Europe.

Contact us for volume discounts.

Status:

Authorised Distributors
Authorized Distributor
Stock
Stock Availability
Bulk Discounts
Volume Discounts
Support
Technical Support
Warranty
Includes Warranty

Product Detail

Status: In Production
Microchip's LAN9514/LAN9514i are the industry's first fully-integrated, Hi-Speed USB 2.0 hub and high-performance 10/100 Ethernet controllers. The LAN9514/LAN9514i are specifically designed to provide system architects with a low-cost, power-efficient, small-footprint USB to Ethernet and multi-port USB connectivity solution in a single package.

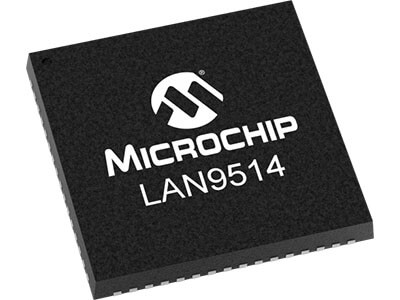

LAN9514 - USB 2.0 to 10/100/1000 Ethernet Bridge with 4-port USB 3.1 Hub
https://www.epsglobal.com/Media-Library/EPSGlobal/Products/LAN9514.jpg?ext=.jpg&maxsidesize=400

Microchip's LAN9514/LAN9514i are the industry's first fully-integrated, Hi-Speed USB 2.0 hub and high-performance 10/100 Ethernet controllers. The LAN9514/LAN9514i are specifically designed to provide system architects with a low-cost, power-efficient, small-footprint USB to Ethernet and multi-port USB connectivity solution in a single package.

LAN9514
New
LAN9514
0.00
Microchip
https://www.epsglobal.com/getmetafile/915ba3d8-2a09-413b-ac56-1b8b793defba

Pricing Table

Technical Specification

Ethernet Bandwidth:
10/100Mbps
PHY:
Yes
Downstream Ethernet/USB Ports:
Ethernet x1, USB2.0 x4
Interface:
USB2.0
Status:
In Production
Automotive Grade:
No
MAC:
Yes
Interrupt Pin:
No
LEDs:
3
Op. Voltage (V):
3.3
I/O Pins:
0
Wake-on-LAN:
Yes
EEE:
No
Temp Range Min. (°C):
-40
Temp Range Max. (°C):
85
Packages:
64/VQFN
