ENC424J600 - 10/100 Base-T/TX Ethernet Controller with SPI Interface
ENC424J600

ENC424J600 - 10/100 Base-T/TX Ethernet Controller with SPI Interface

Manufacturer: Microchip

Datasheet: ENC424J600

Delivers to:

Delivers Worldwide.

Contact us for volume discounts.


Authorized Distributor

Stock Availability

Volume Discounts

Technical Support

Includes Warranty

Product Detail

Status: In Production
Microchip's ENC424J600 offers low-cost stand-alone 10/100 Base-T Ethernet interface controller with integrated MAC & PHY, hardware cryptographic security engines and factory preprogrammed unique MAC address. A 24-Kbyte on-chip RAM buffer is available for TX and RX operations. The ENC424J600 have an industry standard Serial Peripheral Interface (SPI) or a parallel interface. They are designed to serve as an Ethernet network interface for any microcontroller equipped with SPI or a standard parallel port. Microchip’s ENC424J600 enables designers to create secured network- and Internet-connected embedded applications with minimized board space, cost and complexity. Ethernet Application Design Center Microchip's complimentary and confidential LANCheck® online design review services are available for customers who have selected our products for their application design-in*. *The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

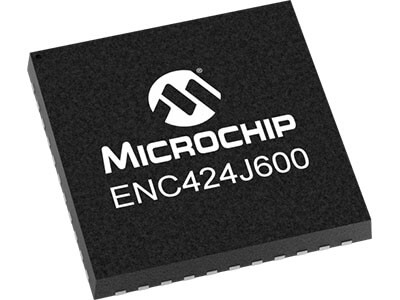

ENC424J600 - 10/100 Base-T/TX Ethernet Controller with SPI Interface
https://www.epsglobal.com/Media-Library/EPSGlobal/Products/ENC424J600.jpg?ext=.jpg&maxsidesize=400

Microchip's ENC424J600 offers low-cost stand-alone 10/100 Base-T Ethernet interface controller with integrated MAC & PHY, hardware cryptographic security engines and factory preprogrammed unique MAC address.

ENC424J600
New
ENC424J600
Microchip
https://www.epsglobal.com/getmetafile/915ba3d8-2a09-413b-ac56-1b8b793defba

Pricing Table

Technical Specification

Ethernet Bandwidth:
10/100Mbps
Interface:
SPI, Parallel
PHY:
Yes
TX/RX RAM Buffer(Bytes):
24k
Status:
In Production
MAC:
Yes
Automotive Grade:
No
Fiber Support:
No
Interrupt Pin:
1
IEEE 1588:
No
WOL:
No
EEE:
No
LEDs:
2
Cable Diag:
No
Op. Voltage (V):
0
Vdd I/O (V):
3.3
Temp Range Min. (°C):
-40
Temp Range Max. (°C):
85
Packages:
44/QFN, 44/TQFP
