Product Detail

Status: Mature Product
The CENTAUR KS8695X, Multi-Port Gateway-on-a-Chip, delivers a high level of networking integration and performance for accelerating broadband gateway development. Key components integrated in the KS8695X include: Integrated Layer 2 managed switch with five Fast Ethernet transceivers and patented mixed-signal low power technology, five media access control (MAC) units, a high-speed non-blocking switch fabric, a dedicated address look-up engine, an on-chip frame buffer memory, and LED controls. One port is partitioned for WAN interface with the other four ports for LAN access. Also integrated is a 166MHz ARM™ (ARM992T) processor with memory management unit (MMU) and 8KB I-cache and 8KB dCache. Shared programmable 8/16/32-bit data bus and 22-bit address bus with up to 64MB total memory space for SDRAM, ROM, Flash, SRAM, and all peripheral devices. Other peripheral support logic including GPIO, a watchdog timer, an interrupt controller, and a JTAG debugging interface. Complete hardware and software reference designs are available. The KS8695X represents a total solution optimized for broadband gateway system development and renders speedy routing performance and connectivity interfaces for value-added networking expansions. Microchip's complimentary and confidential LANCheck® online design review service is available for customers who have selected our products for their application design-in.

KSZ8695 - 10/100 Base-T/TX 5-Port Ethernet SoC Controller with ARM9 Core

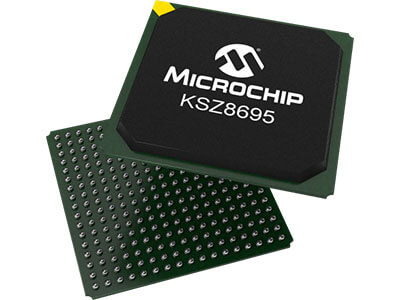

https://www.epsglobal.com/Media-Library/EPSGlobal/Products/KSZ8695.jpg?ext=.jpg&maxsidesize=400

The CENTAUR KS8695X, Multi-Port Gateway-on-a-Chip, delivers a high level of networking integration and performance for accelerating broadband gateway development.

KSZ8695
New
KSZ8695
Microchip
https://www.epsglobal.com/getmetafile/915ba3d8-2a09-413b-ac56-1b8b793defba

Pricing Table

Technical Specification

Ethernet Bandwidth:
10/100Mbps
Interface:
8/16/32-bit, MII
PHY:
Yes
TX/RX RAM Buffer(Bytes):
8k
Status:
Mature Product
MAC:
Yes
Automotive Grade:
No
Fiber Support:
Yes
Interrupt Pin:
0
IEEE 1588:
No
WOL:
Yes
LEDs:
6
Op. Voltage (V):
0
Vdd I/O (V):
3.3
Temp Range Min. (°C):
0
Temp Range Max. (°C):
70
Packages:
289/PBGA
