KSZ8841 - 10/100 Base-T/TX Ethernet Controller with PCI and Host Bus Interface
Microchip
KSZ8841

KSZ8841 - 10/100 Base-T/TX Ethernet Controller with PCI and Host Bus Interface

Manufacturer: Microchip

Datasheet: KSZ8841

Delivers to:

Delivers to Europe.

Contact us for volume discounts.

Status:

Authorised Distributors
Authorized Distributor
Stock
Stock Availability
Bulk Discounts
Volume Discounts
Support
Technical Support
Warranty
Includes Warranty

Product Detail

Status: Mature Product Consider: KSZ8851
The KSZ8841-series of single-port controllers includes PCI and non-PCI CPU interfaces. The KSZ8841-PMQL datasheet describes PCI CPU interface chips. KSZ8841-PMQL is PQFP package chip. For information on the non-PCI controller, refer to the KSZ8841-MQL datasheet. The KSZ8841-PMQL is a single port Fast Ethernet MAC chip with 32-bit/33MHz PCI processor interface. Fully compliant with IEEE 802.3u, it is also available in industrial temperature grades. The KSZ8841MQL has 32-, 16- or 8-bit generic host processor interface. Microchip's complimentary and confidential LANCheck® online design review service is available for customers who have selected our products for their application design-in. The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

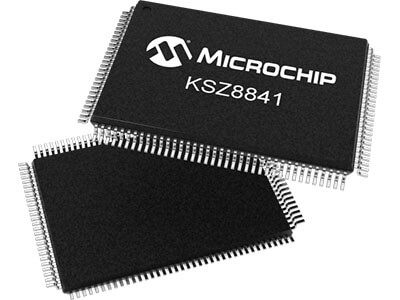

KSZ8841 - 10/100 Base-T/TX Ethernet Controller with PCI and Host Bus Interface
https://www.epsglobal.com/Media-Library/EPSGlobal/Products/KSZ8841.jpg?ext=.jpg&maxsidesize=400

The KSZ8841-series of single-port controllers includes PCI and non-PCI CPU interfaces.

KSZ8841
New
KSZ8841
0.00
Microchip
https://www.epsglobal.com/getmetafile/915ba3d8-2a09-413b-ac56-1b8b793defba

Pricing Table

Technical Specification

Ethernet Bandwidth:
10/100Mbps
Interface:
8/16/32-bit
PHY:
Yes
TX/RX RAM Buffer(Bytes):
8k
Status:
Mature Product Consider: KSZ8851
MAC:
Yes
Automotive Grade:
No
Fiber Support:
Yes
Interrupt Pin:
1
IEEE 1588:
No
WOL:
Yes
LEDs:
4
Cable Diag:
Yes
Op. Voltage (V):
0
Vdd I/O (V):
3.3
Temp Range Min. (°C):
-40
Temp Range Max. (°C):
85
Packages:
128/LQFP, 128/PQFP
