KSZ9692 - 10/100/1000 Ethernet SoC Controller w/ ARM9 Core
KSZ9692

KSZ9692 - 10/100/1000 Ethernet SoC Controller w/ ARM9 Core

Manufacturer: Microchip

Datasheet: KSZ9692

Delivers to:

Contact us for volume discounts.


Authorized Distributor

Stock Availability

Volume Discounts

Technical Support

Includes Warranty

Product Detail

Status: Mature Product
The KSZ9692XPB is a highly integrated System-on-Chip (SoC) containing an ARM™ 922T 32-bit processor and a rich set of peripherals to address the cost-sensitive, high-performance needs of a wide variety of networking and communications applications.

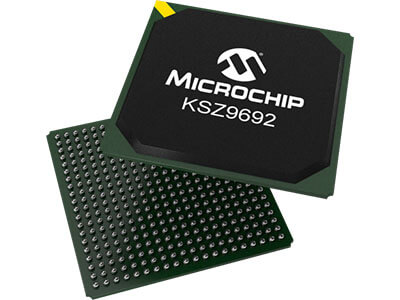

KSZ9692 - 10/100/1000 Ethernet SoC Controller w/ ARM9 Core
https://www.epsglobal.com/Media-Library/EPSGlobal/Products/KSZ9692.jpg?ext=.jpg&maxsidesize=400

The KSZ9692XPB is a highly integrated System-on-Chip (SoC) containing an ARM™ 922T 32-bit processor and a rich set of peripherals to address the cost-sensitive, high-performance needs of a wide variety of networking and communications applications.

KSZ9692
New
KSZ9692
Microchip
https://www.epsglobal.com/getmetafile/915ba3d8-2a09-413b-ac56-1b8b793defba

Pricing Table

Technical Specification

Ethernet Bandwidth:
10/100/1000Mbps
Interface:
8/16-bit
PHY:
No
TX/RX RAM Buffer(Bytes):
8k
Status:
Mature Product
MAC:
Yes
Automotive Grade:
No
Fiber Support:
No
Interrupt Pin:
0
IEEE 1588:
No
WOL:
Yes
LEDs:
0
Cable Diag:
No
Op. Voltage (V):
0
Vdd I/O (V):
3.3
Temp Range Min. (°C):
-40
Temp Range Max. (°C):
85
Packages:
400/PBGA
