Product Detail

Status: In Production
LAN9420/LAN9420i is a full-featured, Fast Ethernet controller which allows for the easy and cost-effective integration of Fast Ethernet into a PCI-based system. LAN9420/LAN9420i consists of a PCI Local Bus Specification Revision 3.0 compliant interface, DMA Controller, Ethernet MAC, and 10/100 Ethernet PHY. LAN9420/LAN9420i provides full IEEE 802.3 compliance and all internal components support full/half-duplex 10BASE-T, 100BASE-TX, and manual full-duplex flow control. The descriptor based scatter-gather DMA supports usage of zero-copy drivers, effectively increasing throughput while decreasing Host load. The integrated IRQ deassertion timer allows a minimum IRQ deassertion time to be set, providing reduced Host load and greater control over service routines. Automatic 32-bit CRC generation/checking, automatic payload padding, and 2K jumbo packets (2048 byte) are supported.*The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

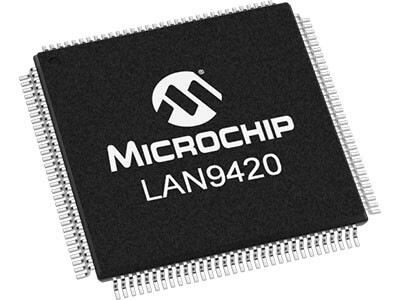

LAN9420 - 10/100 Base-T/TX Ethernet Controller with PCI Interface
https://www.epsglobal.com/Media-Library/EPSGlobal/Products/LAN9420.jpg?ext=.jpg&maxsidesize=400

LAN9420/LAN9420i is a full-featured, Fast Ethernet controller which allows for the easy and cost-effective integration of Fast Ethernet into a PCI-based system.

LAN9420
New
LAN9420
Microchip
https://www.epsglobal.com/getmetafile/915ba3d8-2a09-413b-ac56-1b8b793defba

Pricing Table

Technical Specification

Ethernet Bandwidth:
10/100Mbps
Interface:
32 bit PCI 3.0
PHY:
Yes
TX/RX RAM Buffer(Bytes):
N/A
Status:
In Production
MAC:
Yes
Automotive Grade:
No
Fiber Support:
No
Interrupt Pin:
1
IEEE 1588:
No
WOL:
No
EEE:
No
LEDs:
3
Cable Diag:
No
Op. Voltage (V):
0
Vdd I/O (V):
3.3
Temp Range Min. (°C):
-40
Temp Range Max. (°C):
85
Packages:
128/TQFP
