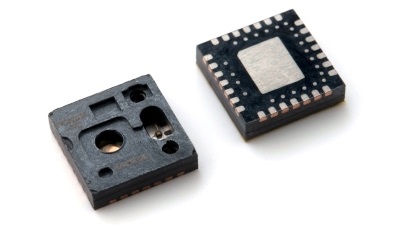

Low power, right angle Optical Track Sensor (OTS) QFN
PMT9123QS-TVIT

Low power, right angle Optical Track Sensor (OTS) QFN

Quantity breaks available. View Pricing Table

Pricing Table

"The PMT9121QS-TVIT is PixArt Imaging's low power, right angle Optical Track Sensor (OTS) in a small form factor QFN package."

Product Detail

"The PMT9121QS-TVIT is PixArt Imaging's low power, right angle Optical Track Sensor (OTS) in a small form factor QFN package. It has a new low-power architecture and automatic power management modes, based on optical navigation technology that enables digital surface tracking, ideal for wireless input devices. This chip integrates optical imager and IR LED light source in a single SMT package, and together with LST0-M30 lens assembly; form a complete and compact tracking system that does not require code wheel, code strip many any special marking on the tracking surfaces for motion control or tracking purposes."

Pricing Table

Technical Specification

Gesture Mode:
New Design
Image Array Size:
1.7-2.0V
Sampling Rate:
2-Wire SPI
Operating Distance:
28-QFN
Output Types:
2000cpi
Cursor Mode:
25ips/8g
Interface:
Integrated IR LED
Package Size:
6.0 x 6.0 x 1.45
Light Source:
0.45mA

Additional Documentation

Manufacturer

Pixart

PixArt Imaging Inc. is a CMOS imaging sensing and navigation company offering a broad selection of sensors and technologies to support today’s complex human-machine interface designs. PixArt specializes in CMOS image sensors (CIS), capacitive touch controllers and related imaging application development.
