Media Tracking Chip using low power CMOS

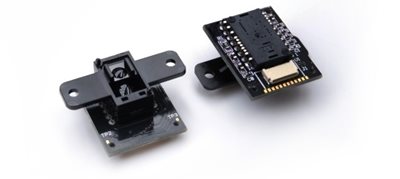

PMJ9100S1

Media Tracking Chip using low power CMOS

Quantity breaks available. View Pricing Table

Pricing Table

The PMJ9100S1 is a high performance Media Tracking Chip using low power CMOS technology designed specifically to track media print in printer applications.

Product Detail

The PMJ9100S1 is a high performance Media Tracking Chip using low power CMOS technology designed specifically to track media print in printer applications. This sensor offers high repeated accuracy with error rate of +/- 15um over 1-inch of media movement with speed up to 15 inches per second. It integrates an IR light source and optical chip with built-in picture element recognition engine and DSP that provides the host system real-time feedback on the surface movement.

Pricing Table

Technical Specification

Gesture Mode:
New Design
Image Array Size:
3.0-3.6V
Sampling Rate:
4-Wire SPI
Operating Distance:
12-pin Module
Output Types:
17904cpi
Cursor Mode:
15ips/4m/s^2
Interface:
Integrated IR LED
Package Size:
29 x 24 x 10.15
Light Source:
18mA

Additional Documentation

Manufacturer

Pixart

PixArt Imaging Inc. is a CMOS imaging sensing and navigation company offering a broad selection of sensors and technologies to support today’s complex human-machine interface designs. PixArt specializes in CMOS image sensors (CIS), capacitive touch controllers and related imaging application development.
