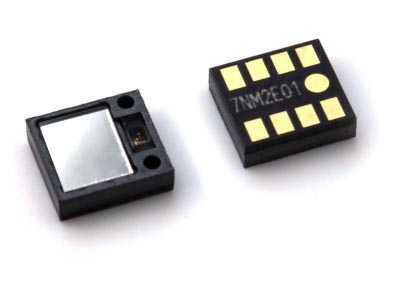

PAT9125EL-TKIT
PAT9125EL-TKIT

PAT9125EL-TKIT

Quantity breaks available. View Pricing Table

Pricing Table

  • Low power consumption
  • Resolution: from approx. 5cpi to 1275cpi, or 630 counts/rev (based on 1mm diameter shaft)
  • Wide working range of 1~10mm (on stainless steel)
  • Position sensing support
  • SMT reflowable 8-pin LGA integrated with VCSEL LASER die

Sensors & Boards

Product Detail

  • Low power consumption
  • Resolution: from approx. 5cpi to 1275cpi, or 630 counts/rev (based on 1mm diameter shaft)
  • Wide working range of 1~10mm (on stainless steel)
  • Position sensing support
  • SMT reflowable 8-pin LGA integrated with VCSEL LASER die
  • Compliance with IEC-EN 60825-1 Eye Safety
  • Requires no optical lens
  • Suitable for digital rotary input on smart watches, fine resolution input selectors and smart dials

Pricing Table

Technical Specification

Additional Documentation

Manufacturer

Pixart

PixArt Imaging Inc. is a CMOS imaging sensing and navigation company offering a broad selection of sensors and technologies to support today’s complex human-machine interface designs. PixArt specializes in CMOS image sensors (CIS), capacitive touch controllers and related imaging application development.

Learn about Pixart
