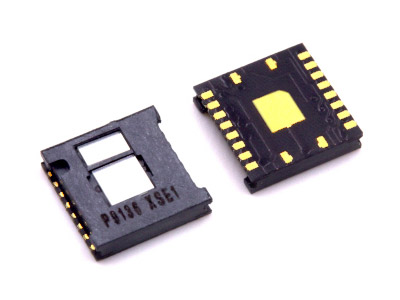

The PAT9136E1-TXQT is a high-speed optical motion tracking sensor capable of tracking up to 5m/s with a dual-axis motion data report. Its typical tracking error rate is impressively low at 1~3%. It performs exceptionally well on glossy surfaces like stainless steel and aluminum, offering a flexible working range of 5mm to 50mm depending on the surface. The compact 16-pin LGA package includes an integrated light source, making the design process more straightforward. This sensor operates with a supply voltage range of 1.8V to 3.3V, and features a resolution of 20,000 Counts Per Inch (CPI), indicating high accuracy. It's designed for use on various hard surfaces and can function without a pairing lens, which simplifies integration into systems

PAT9136E1-TXQT
https://www.epsglobal.com/getmetafile/4713042a-4785-44ab-b2a9-876b873a2850/PAT9136E1-TXQT?maxsidesize=400
  • High-speed motion tracking of up to 5m/s
  • Reports accurate dual-axis motion data with a typical tracking error rate of 1~3%
  • Excellent tracking performance on glossy surfaces, including stainless steel and aluminum
  • Provides flexible design possibilities, with a wide working range of 5mm~50mm (surface-dependant)
  • Compact LGA package with integrated light source

Sensors & Boards

PAT9136E1-TXQT
New
PAT9136E1-TXQT
0.00
Pixart
https://www.epsglobal.com/getmetafile/3e42d374-cf50-4012-9e85-842d0969c904

Features & Benefits

  • High-speed motion tracking of up to 5m/s
  • Reports accurate dual-axis motion data with a typical tracking error rate of 1~3%
  • Excellent tracking performance on glossy surfaces, including stainless steel and aluminum
  • Provides flexible design possibilities, with a wide working range of 5mm~50mm (surface-dependant)
  • Compact LGA package with integrated light source

Technical Specifications

Supply Voltage (V)VDD: 1.8~2.1; VDD_VCSEL: 2.8~3.3
Interface Voltage (V)VDDIO: 1.8~3.3
Power Consumption (mA)Typ. 16.5
Shutdown Current (μA)Typ. 4
Repeated Accuracy Error at Nominal Height0.03
Communication4-Wire SPI @4MHz
Resolution20000 CPI
Tracking Speed5m/s
Package Type16-pin LGA
Package Size (mm)6.0*6.0*1.35
Working Distance to Tracking Surface5~50mm
System Package to Surface0 degree
Light Source Wavelength (nm)850
PA No. of Pairing LensNo lens required
Paper Float FunctionN/A
IntegratedYes (VCSEL)
-->

Manufacturer

Pixart

PixArt Imaging Inc. is a CMOS imaging sensing and navigation company offering a broad selection of sensors and technologies to support today’s complex human-machine interface designs. PixArt specializes in CMOS image sensors (CIS), capacitive touch controllers and related imaging application development.
