home products Semiconductors Wireless Modules N21 - Low-power Consumption and High-performance NB-IoT Module (supports eSIM cards)
N21 - Low-power Consumption and High-performance NB-IoT Module (supports eSIM cards)
Neoway
N21

N21 - Low-power Consumption and High-performance NB-IoT Module (supports eSIM cards)

Manufacturer: Neoway

Datasheet: N21

Delivers to:

Delivers to Europe.

Contact us for volume discounts.

Status:

Authorised Distributors
Authorized Distributor
Stock
Stock Availability
Bulk Discounts
Volume Discounts
Support
Technical Support
Warranty
Includes Warranty

Product Detail

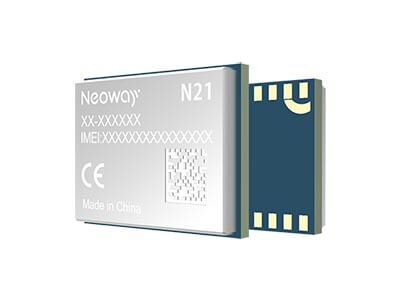

N21 is a low-power consumption and high-performance NB-IoT module that supports eSIM cards. Its dimensions are only 18.0 mm x 13.8 mm x 2.5 mm. Its pins are packaged in LGA, which reduces the product area. The N21 series can be used in most regions where NB-IoT networks are deployed, including Asia, Europe, and Australia. N21 integrates industrial UART interfaces and supports various network protocols, such as CoAP, UDP, TCP, IP, and MQTT. With low power consumption, ultra-wide operating temperature range, and excellent RF performance, N21 is the optimal option for energy metering, smart lock, security, environmental monitoring, and other scenarios.

Features

  • All network modes
  • eSIM optional
  • BLE GATT Protocol
  • ePSM
  • MOTA / FOTA
  • Upl

N21 - Low-power Consumption and High-performance NB-IoT Module (supports eSIM cards)
https://www.epsglobal.com/getmetafile/cbc97593-deed-4726-a9fc-8376a7c81627/N21?maxsidesize=400
N21 is the smallest NB-IoT module in the industry and supports eSIM cards. It supports ePSM/MOTA/FOTA and BLE GATT.
N21
New
N21
0.00
Neoway
https://www.epsglobal.com/getmetafile/5a9e2ff4-82ea-4fbf-9b77-f09e2e802314

Pricing Table

Technical Specification

Supply Voltage:
3.4 V to 4.3 V, Typ.: 3.8 V
Dimensions:
24.0 mm x 20.0 mm x 2.45 mm
Frequency Bands:
CN: HD-FDD NB-IoT: B3/B5/B8 GSM|GPRS: 900/1800 MHz EU: HD-FDD NB-IoT: B3/B5/B8/B20/B28 GSM|GPRS: 850/900/1800/1900 MHz
Package:
52-pin LGA
Interface:
UART x 2 PWRKEY_N RESET_N WAKEUP_IN WAKEUP_OUT NET_LIGHT USIM (1.8 V / 3.0 V)
BT:
BTE (Generic Attribute profile)
Protocol:
CoAP/UDP/LWM2M/MQTT/TCP/DTLS/DNS/FTP/HTTP/HTTPS
ESD:
ESD VBAT: ±8 kV / ±15 kV GND: ±8 kV / ±15 kV ANT: ±8 kV / ±15 kV Other: ±2 kV / ±4 kV

Manufacturer

Neoway

Neoway Technology is a hi-tech enterprise that is dedicated to providing communications products and related services for Industrial Internet of Things (IIoT). Their products include 2G/3G/4G/5G/NB-IoT/eMTC cellular modules devices neopipe cloud and neoaccess cloud which are widely used in Smart Energy IoV Smart Manufacturing Commercial Retail Smart City and other industries.
