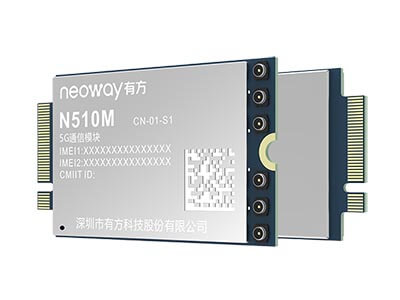

N510M - 5G/4G/3G Multimode Module
N510M

N510M - 5G/4G/3G Multimode Module

Manufacturer: Neoway

Datasheet: N510M

Delivers to:

Delivers to Europe.

Contact us for volume discounts.


Authorized Distributor

Stock Availability

Volume Discounts

Technical Support

Includes Warranty

Product Detail

As a 5G/4G/3G multimode module, N510M supports a wide range of frequency bands and has excellent RF performance. It supports sub-6 GHz 5G spectrum and supports both standalone (SA) and non-standalone (NSA) network deployment. N510M integrates various network protocols and provides industry-standard interfaces. It supports high-speed interfaces, such as PCIe and USB3.1, to meet the requirements for ultrahigh speed data transmission in the eMBB scenario. N510M supports drivers for Windows 7/8/8.1/10, Linux, and Android, and facilitates application development. The N510M series can be used in China, Europe, Southeast Asia, and most other regions where 5G networks are deployed. Even in areas without 5G, N510M can work on 4G and 3G networks.

Features

  • M.2 package
  • SA/NSA
  • SeLinux/Secure boot
  • UplUplUpl

N510M - 5G/4G/3G Multimode Module
https://www.epsglobal.com/getmetafile/d57b1c51-ba6e-40b1-ba40-096e05a925f0/N510M?maxsidesize=400

N510M is a 5G cellular module that is designed for IoT dedicatedly.

N510M
New
N510M
Neoway
https://www.epsglobal.com/getmetafile/5a9e2ff4-82ea-4fbf-9b77-f09e2e802314

Pricing Table

Technical Specification

Supply Voltage:
3.1 V to 4.4 V, TYP.: 3.3 V
Dimensions:
52.0 mm x 30.0 mm x 3.8 mm
Frequency Bands:
5G NR: n1/n28/n41/n77/n78/n79 LTE FDD: B1/B3/B5/B7/B8 LTE TDD: B34/B38/B39/B40/B41 UMTS: B1/B2/B5/B8
Package:
M.2
Operating Temperature:
-20℃ to 70℃
Interface:
PCIe Gen 2 USB 2.0 / 3.1 I2S UART USIM (1.8 V / 3.0 V)
Protocol:
PPP/RNDIS/TCP/UDP/FTP/HTTP/HTTPS/NTP/IPv4/IPv6
Region:
China / SEA
