home products Service Provider Access Routers S9510-30XC 30-Port 1/10/25/40/100GE Disaggregated Cell Site Gateway

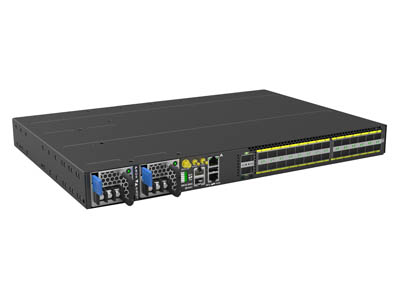

S9510-30XC 30-Port 1/10/25/40/100GE Disaggregated Cell Site Gateway

S9510-30XC 30-Port 1/10/25/40/100GE Disaggregated Cell Site Gateway

Manufacturer: ufiSpace

Datasheet: S9510-30XC

Delivers to:

Delivers to Europe.

Contact us for volume discounts.


Authorised Distributors
Authorized Distributor
Stock Availability
Bulk Discounts
Volume Discounts
Technical Support
Includes Warranty

Product Detail

The UfiSpace S9510-30XC is a high-performance, versatile open networking white box router that is designed to address the changing needs of backhaul transport requirements as telecoms make the transition from legacy technologies towards 5G.

It enables telecoms and service providers to deploy disaggregated open network infrastructure to lower costs and rapidly scale existing services for edge computing, mobile backhaul, and broadband access applications.

The S9510-30XC is future-proof with 30 high-speed interfaces, support for FlexE features and options for processing capabilities. It supports full timing features of IEEE 1588v2, SyncE, and TSN.

Suitable for both indoor and outdoor deployments, the S9510-30XC has redundant, hot-swappable components for convenience, increased availability, reliability and lower costs of maintenance.

S9510-30XC 30-Port 1/10/25/40/100GE Disaggregated Cell Site Gateway
The UfiSpace S9510-30XC is a high-performance open networking router with 30 high-speed interfaces, FlexE support, and full timing features. It's designed for 5G transition, edge computing, and broadband access, with hot-swappable components for reliability.

Features & Benefits

  • Multi-function Disaggregated Cell Site Gateway
  • Supports FlexE, TSN, SyncE, and IEEE 1588
  • 28 x 1GE/10GE/25GE SFP28 ports
  • 2 x 40GE/100GE QSFP28 ports
  • 1 x RJ45 serial console port
  • 1 x 10/100/1000M RJ45 management port

Technical Specifications

ASICBroadcom Qumran2u BCM88284
Chassis1RU, 440W x 43.5H x 302D mm (17.32"x1.71"x11.89") Weight: 4.5 kg (9.92 lbs)
Memory1x8GB DDR4 SO-DIMM with ECC
Non-Operating Spec.Storage temperature: -40°C to 70°C (-40°F to 158°F) Storage humidity: 5% to 85% (RH), non-condensing
Operating Spec.-40°C to 65°C (-40°F to 149°F) Operating humidity: 5% to 93% (RH), non-condensing
Power supplyAC input: 100 to 240V DC input: -40 to -75V
ProcessorIntel Denverton-NS 4 Core @ 1.6GHz
Redundancy1+1 hot swappable power units 4+1 hot swappable fan units
Storage32GB M.2 SSD



UfiSpace provides end-to-end 5G networking solutions for telecommunication companies, cloud service providers and data centers. Their passion and dedication towards customer service and engineering excellence has brought UfiSpace to the forefront of 5G technology innovation.
