home products Service Provider Optical Transport N3100-4C - Accurate 5G Timing Adapter
N3100-4C - Accurate 5G Timing Adapter
ufiSpace
N3100-4C

N3100-4C - Accurate 5G Timing Adapter

Manufacturer: ufiSpace

Datasheet: N3100-4C

Delivers to:

Delivers to Europe.

Contact us for volume discounts.

Status:

Authorised Distributors
Authorized Distributor
Stock
Stock Availability
Bulk Discounts
Volume Discounts
Support
Technical Support
Warranty
Includes Warranty

Product Detail

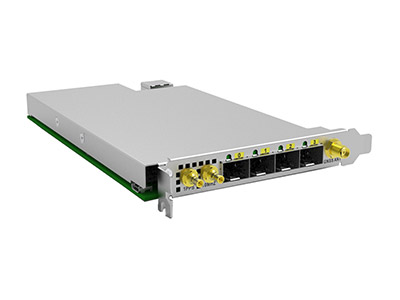

The UfiSpace N3100-4C is a 5G timing adapter that delivers accurate and reliable synchronization for COTS (Commercial of the Shelf) servers to address the O-RAN Open Fronthaul requirement.

By offloading the Precision Time Protocol (PTP) stack and servo from the COTS server, the N3100-4C will deliver stringent timing synchronization needed for end-to-end solution in O-RAN infrastructure. Equipped with Stratum 3E OXCO, high performance FPGA and in-house software stack complied with PTP and SyncE standards, N3100-4C provides Class C timing accuracy for various use cases such as 5G O-RAN fronthaul, data centers, High-Frequency Trading (HFT) and industrial automation. With all the software stack running on top of the adapter, it eliminates the extra integration and validation effort and ensures consistent timing performance under heavy DU CPU workload.

The N3100-4C is future-proofed with Intel E-810 controller, 4x 10GE/25GE interfaces, and multiple timing source including GNSS, 1PPS and 10MHz. It provides full timing features supporting Grand Master (T-GM), Boundary Clock (T-BC), and G8275.1 telecom profile and can fulfill O-RAN defined synchronization topology (LLS C1, C2, C3) requirement.

N3100-4C - Accurate 5G Timing Adapter
https://www.epsglobal.com/app_themes/continuum/dist/images/unavailable.jpg?maxsidesize=400
The UfiSpace N3100-4C is a 5G timing adapter with Stratum 3E OXCO, high-performance FPGA, and PTP/SyncE-compliant software. It features an Intel E-810 controller, 4x 10GE/25GE interfaces, and supports multiple timing sources. Ideal for O-RAN infrastructure, data centers, and industrial automation.
N3100-4C
New
N3100-4C
0.00
ufiSpace
https://www.epsglobal.com/getmetafile/d12990ae-2a23-456e-8f8c-1604875b0cc9

Features & Benefits

  • 4 x 10/25G SFP 28ports
  • State machine fully compliant to ITU-TG8275.1
  • PTP redundancy (tracking mechanism)
  • SyncE and ESMC
  • Dynamic Configuration, no restart needed
  • Intuitive command line interface
  • Assisted FTS (Full Timing Support)
  • Supports full SyncE and IEEE 1588v2 (T-GM, T-BC/OC)

Technical Specifications

Chassis126.35W x 181.07D x 21.95H mm (4.97" x 7.12" x 0.86")
FPGACyclone V SOC
Memory4GB DDR4
ProcessorIntel E-810
Timing Interfaces1x GNSS input SMA; 1x 1PPS input/output SMB; 1x 10MHz input/output SMB
-->

Manufacturer

ufiSpace

UfiSpace provides end-to-end 5G networking solutions for telecommunication companies, cloud service providers and data centers. Their passion and dedication towards customer service and engineering excellence has brought UfiSpace to the forefront of 5G technology innovation.

Learn about ufiSpace
