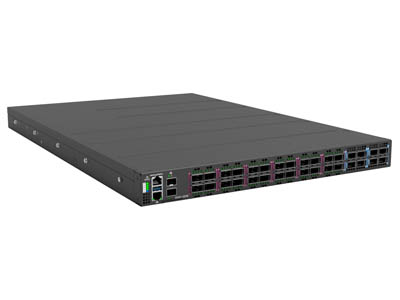

S9301-32DB 24 x 200GE QSFP56 & 8 x 400GE QSFP-DD ports

S9301-32DB 24 x 200GE QSFP56 & 8 x 400GE QSFP-DD ports

Manufacturer: ufiSpace

Datasheet: S9301-32DB

Delivers to:

Delivers to Europe.

Contact us for volume discounts.


Authorised Distributors
Authorized Distributor
Stock Availability
Bulk Discounts
Volume Discounts
Technical Support
Includes Warranty

Product Detail

The UfiSpace S9301-32DB is a high-performance, data center networking white box switch that is designed to address the fast growing segment of the data center switching market and the needs to push service capacity to the next level.

With 24 x 200GE QSFP56 and 8 x 400GE QSFP-DD ports, the S9301-32DB spine and leaf switch utilizes the Broadcom Trident4-X9 silicon to provide intelligent features and structured management for centralized servers to enable high-efficiency Ethernet connectivity for data center services.

These switches deliver performance and intelligence to the network edge in a flexible 1RU form factor that helps reduce infrastructure and administrative costs.

The S9301-32DB is the epitome of future networking with a powerful Intel Skylake-D 8-core processor and high-speed 200GE/400GE interfaces.

It comes with redundant, hot swappable components for convenience, increased availability, reliability and lower costs of maintenance.

S9301-32DB 24 x 200GE QSFP56 & 8 x 400GE QSFP-DD ports
The UfiSpace S9301-32DB is a high-performance data center switch with 24 x 200GE QSFP56 and 8 x 400GE QSFP-DD ports. It features a powerful Intel Skylake-D 8-core processor, intelligent Broadcom Trident4-X9 silicon, and redundant, hot swappable components.

Features & Benefits

  • 1 RU, Data Center Spine/Leaf Switch
  • 8Tbps switching capacity
  • 24 x 200GE QSFP56 ports
  • 8 x 400GE QSFP-DD ports
  • 2 x 10GE SFP+ management ports
  • 1 x 10/100/1000 RJ-45 OOB management port

Technical Specifications

ASICBroadcom Trident4-X9 BCM56780
Chassis1RU, 436W x 43.8H x 645D mm (17.17" x 1.73" x 25.4") Weight: 11.2 kg (24.67 lbs)
Memory32GB DDR4 R-DIMM with ECC support
Non-Operating Spec.Storage temperature: -40°C to 70°C (-40°F to 158°F) Storage humidity: 5% to 95% (RH), non-condensing
Operating Spec.0°C to 40°C (32°F to 104°F) Operating humidity: 10% to 90% (RH), non-condensing
Power supplyAC input: 100 to 240V, 12A DC input: -40 to -75V, 40A Typical power: 242 Watts (no transceiver)
ProcessorIntel Skylake-D 8 Core @ 1.9GHz
Redundancy1+1 hot swappable power units 5+1 hot swappable fan units
Storage128GB SSD
