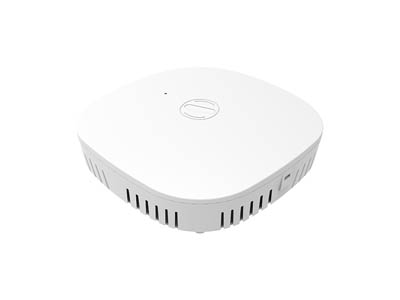

ion4i_w - Wi-Fi 5 Indoor APs

ion4i_w - Wi-Fi 5 Indoor APs

Manufacturer: IO by HFCL

Datasheet: ion4i_w

Delivers to:

Delivers to Europe.

Contact us for volume discounts.


Authorised Distributors
Authorized Distributor
Stock Availability
Bulk Discounts
Volume Discounts
Technical Support
Includes Warranty

Product Detail

Introducing the ion4i_w - Wi-Fi 5 Indoor Access Point, a cutting-edge solution for your connectivity needs. This device is equipped with advanced features such as 802.11 a/b/g/n/ac/ac Wave 2, 2x2 MIMO with 2 spatial streams, and a maximum transmit power of 25dBm for both 2.4GHz and 5GHz. It supports up to 256 QAM modulation and offers an impressive 1.27 Gbps aggregate throughput.

The ion4i_w is designed with integrated high gain omnidirectional antennas, providing optimized coverage for your space. It's perfect for medium-density retail stores, pop-up shops, branch offices, restaurants, small offices/home offices (SOHO), small to medium enterprises, ISPs, and small classrooms.

This Wi-Fi 5 Indoor AP is not just about high-speed connectivity, it also ensures secure data transmission and an enhanced user experience. It's equipped with Passpoint 3.0 and is mesh certified, ensuring seamless and uninterrupted connectivity.

The ion4i_w is also a dual-band radio, offering high throughput for your demanding network needs. Plus, it's cloud-managed, making network management a breeze. Experience the future of connectivity with the ion4i_w - Wi-Fi 5 Indoor Access Points.

ion4i_w - Wi-Fi 5 Indoor APs

Features & Benefits

  • 802.11 a/b/g/n/ac/ac Wave 2
  • 2x2 MIMO with 2 spatial streams
  • 1.27 Gbps aggregate throughput
  • Max transmit power: 25dBm for 2.4GHz, 25dBm for 5GHz
  • Supports up to 256 QAM modulation
  • Integrated High gain Omnidirectional Antennas with optimized coverage
  • High Throughput
  • Dual-Band Radio
  • Passpoint 3.0
  • Integrated Omnidirectional Antennas
  • Mesh Certified
  • Secure Data Transmission
  • Enhanced User Experience
  • Cloud Managed Network

Technical Specifications

Antenna TypeIntegrated
Max Transmit Power27 dBm
Maximum Concurrent User Support192
Peak Throughput1.27 Gbps
SON MeshYes
TechnologyWi-Fi 5
WPA2 SecurityYes



IO by HFCL's comprehensive set of products include a full range of Indoor and Outdoor WiFi5 and WiFi6 AccessPoints, P2P and P2mP Unlicensed Band Radios (UBR), Switches and a massively scalable Cloud Network Management System. The entire portfolio has been conceptualized, designed, developed and manufactured in India complying with global specifications with a sole objective to provide ubiquitous connectivity by delivering affordable, interoperable and high-quality wireless Access Solutions for all.
