ion4_w - Wi-Fi 5 Outdoor APs

ion4_w - Wi-Fi 5 Outdoor APs

Manufacturer: IO by HFCL

Datasheet: ion4_w

Delivers to:

Delivers to Europe.

Contact us for volume discounts.


Authorised Distributors
Authorized Distributor
Stock Availability
Bulk Discounts
Volume Discounts
Technical Support
Includes Warranty

Product Detail

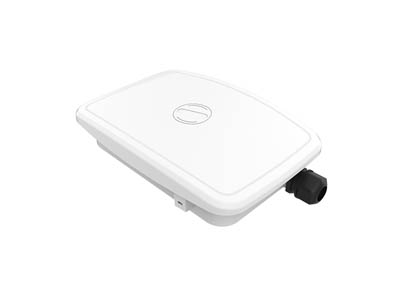

Introducing the ion4_w - Wi-Fi 5 Outdoor Access Point, a cutting-edge solution for seamless outdoor connectivity. This device is equipped with advanced features such as 802.11a/b/g/n/ac/ac Wave 2, 2x2 MIMO with 2 spatial streams, and a maximum aggregate throughput of 1.27 Gbps. It also boasts a maximum transmit power of 25dBm for both 2.4GHz and 5GHz frequencies, and supports up to 256 QAM modulation.

The ion4_w is designed with integrated high-gain omnidirectional antennas, ensuring optimized coverage for all your outdoor needs. It is perfect for a variety of applications including outdoor dining or order-in services, campsites or RV parks, parks or sports complexes, parking lots, and low to medium density outdoor hotspot environments.

This Wi-Fi 5 Outdoor AP offers high throughput and dual-band radio for superior performance. It also features fast roaming and segmented networks for enhanced user experience. With WPA3 Personal, Enterprise, and Enhanced Open Support, it ensures top-notch security for your network.

The ion4_w also offers band steering and load balancing capabilities, providing a smooth and efficient network experience. It allows centralized control over the network, making it easy to manage and monitor.

Built to withstand harsh outdoor conditions, the ion4_w is IP67 rated, offering high resistance to dust and water. Experience the future of outdoor connectivity with the ion4_w - Wi-Fi 5 Outdoor Access Points.

ion4_w - Wi-Fi 5 Outdoor APs

Features & Benefits

  • 802.11a/b/g/n/ac/ac Wave 2
  • 2x2 MIMO with 2 spatial streams
  • 1.27 Gbps aggregate throughput
  • Max transmit power: 25dBm for 2.4GHz, 25dBm for 5GHz
  • Supports up to 256 QAM modulation
  • Integrated High gain Omnidirectional Antennas with optimized coverage
  • Fast Roaming
  • Segmented Networks
  • Integrated Omnidirectional Antennas
  • WPA3 Personal, Enterprise and Enhanced Open Support
  • Band Steering and Load Balancing Capability
  • Centralized Control over Network
  • IP67 Rated

Technical Specifications

Antenna TypeIntegrated
Max Transmit Power27 dBm
Maximum Concurrent User Support192
Peak Throughput1.27 Gbps
SON MeshYes
TechnologyWi-Fi 5
WPA2 SecurityYes



IO by HFCL's comprehensive set of products include a full range of Indoor and Outdoor WiFi5 and WiFi6 AccessPoints, P2P and P2mP Unlicensed Band Radios (UBR), Switches and a massively scalable Cloud Network Management System. The entire portfolio has been conceptualized, designed, developed and manufactured in India complying with global specifications with a sole objective to provide ubiquitous connectivity by delivering affordable, interoperable and high-quality wireless Access Solutions for all.
