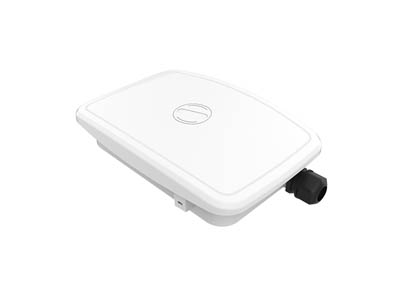

ion4_w2 - Wi-Fi 5 Outdoor APs

ion4_w2 - Wi-Fi 5 Outdoor APs

Manufacturer: IO by HFCL

Datasheet: ion4_w2

Delivers to:

Delivers to Europe.

Contact us for volume discounts.


Authorised Distributors
Authorized Distributor
Stock Availability
Bulk Discounts
Volume Discounts
Technical Support
Includes Warranty

Product Detail

Introducing the ion4_w2 - Wi-Fi 5 Outdoor Access Point, a cutting-edge solution for all your outdoor connectivity needs. This device is equipped with 802.11a/b/g/n/ac/ac Wave 2 technology and 2x2 MIMO with 2 spatial streams, delivering an impressive 1.27 Gbps aggregate throughput. It boasts a maximum transmit power of 25dBm for both 2.4GHz and 5GHz frequencies, and supports up to 256 QAM modulation.

The ion4_w2 is perfect for outdoor dining or order-in services, campsites or RV parks, parks or sports complexes, parking lots, and low foot traffic areas. It's also ideal for low to medium density outdoor hotspot environments. With its integrated high gain omnidirectional antennas, it provides optimized coverage, ensuring a strong and stable connection wherever you are.

This Wi-Fi 5 Outdoor AP offers high throughput and dual-band radio for seamless connectivity. It also features fast roaming, segmented networks, and WPA3 Personal, Enterprise, and Enhanced Open Support for maximum security. With its band steering and load balancing capability, it ensures optimal performance and efficient use of resources.

The ion4_w2 also offers centralized control over your network, making it easy to manage and monitor. It's IP67 rated, meaning it's designed to withstand harsh outdoor conditions. Experience the future of outdoor connectivity with the ion4_w2 - Wi-Fi 5 Outdoor Access Points.

ion4_w2 - Wi-Fi 5 Outdoor APs

Features & Benefits

  • 802.11a/b/g/n/ac/ac Wave 2
  • 2x2 MIMO with 2 spatial streams
  • 1.27 Gbps aggregate throughput
  • Max transmit power: 25dBm for 2.4GHz, 25dBm for 5GHz
  • Supports up to 256 QAM modulation
  • Integrated High gain Omnidirectional Antennas with optimized coverage
  • Fast Roaming
  • Segmented Networks
  • Integrated Omnidirectional Antennas
  • WPA3 Personal, Enterprise and Enhanced Open Support
  • Band Steering and Load Balancing Capability
  • Centralized Control over Network
  • IP67 Rated

Technical Specifications

Antenna TypeIntegrated
Max Transmit Power27 dBm
Maximum Concurrent User Support192
Peak Throughput1.27 Gbps
SON MeshYes
TechnologyWi-Fi 5
WPA2 SecurityYes



IO by HFCL's comprehensive set of products include a full range of Indoor and Outdoor WiFi5 and WiFi6 AccessPoints, P2P and P2mP Unlicensed Band Radios (UBR), Switches and a massively scalable Cloud Network Management System. The entire portfolio has been conceptualized, designed, developed and manufactured in India complying with global specifications with a sole objective to provide ubiquitous connectivity by delivering affordable, interoperable and high-quality wireless Access Solutions for all.
