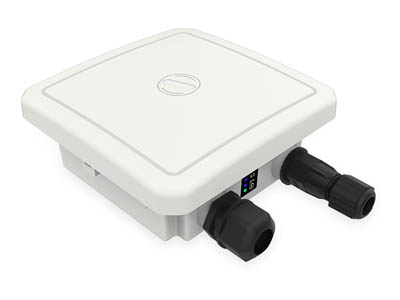

Introducing the ion4x_2 - Wi-Fi 6 Outdoor Access Point, a cutting-edge solution for seamless and high-speed internet connectivity in outdoor environments. This device is equipped with the latest 802.11 a/b/g/n/ac/ac Wave2/ax technology, delivering an impressive aggregate throughput of 1.78 Gbps.

The ion4x_2 features 2X2:2 MU-MIMO, allowing simultaneous data transmission to multiple devices, enhancing efficiency and user experience. It comes with integrated directional antennas, offering an option for 8 or 14 dBi gain, ensuring superior coverage. With IP67 certification, this access point is resistant to dust and water, making it ideal for outdoor installations.

The ion4x_2 can support up to 1024 concurrent clients, making it perfect for high foot traffic areas such as outdoor stadiums, public venues, industrial belts, and transportation hubs like airports and railways. It offers up to 30 dBm transmit power, ensuring robust and reliable connectivity even in challenging environments.

This cloud-managed access point allows for easy and efficient network management. It also features EasyMesh Networking for seamless network expansion and Traffic Shaping & Application-Aware for optimized network performance.

The ion4x_2 offers higher security and guest access, ensuring your network remains secure while providing convenient access to visitors. Plus, it's designed to improve battery life, making it a cost-effective and energy-efficient solution for your connectivity needs.

Experience the future of outdoor connectivity with the ion4x_2 - Wi-Fi 6 Outdoor Access Points.

ion4x_2 - Wi-Fi 6 Outdoor APs

Features & Benefits

  • 802.11 a/b/g/n/ac/ac Wave2/ax
  • 1.78 Gbps aggregate throughput
  • 2X2:2 MU-MIMO
  • Integrated directional antennas with an option for 8 or 14 dBi gain
  • IP67 Certified
  • Up to 30 dBm transmit power
  • 1024 concurrent client support
  • Cloud Managed Access Point
  • Higher Efficiency
  • Dual-Band Radio Offering Peak Data Rate up to 1.78 Gbps
  • Bi-Directional, Multi User-Multiple Input Multiple Output (MU-MIMO)
  • EasyMesh Networking
  • Better Coverage with Integrated Antenna
  • Traffic Shaping & Application-Aware
  • Higher Security & Guest Access
  • Improved Battery Life

Technical Specifications

Antenna TypeIntegrated
Max Transmit Power30dBm
Maximum Concurrent User Support1024
Peak Throughput1.78 Gbps
TechnologyWi-Fi 6
WPA3 SecurityYes



IO by HFCL's comprehensive set of products include a full range of Indoor and Outdoor WiFi5 and WiFi6 AccessPoints, P2P and P2mP Unlicensed Band Radios (UBR), Switches and a massively scalable Cloud Network Management System. The entire portfolio has been conceptualized, designed, developed and manufactured in India complying with global specifications with a sole objective to provide ubiquitous connectivity by delivering affordable, interoperable and high-quality wireless Access Solutions for all.
