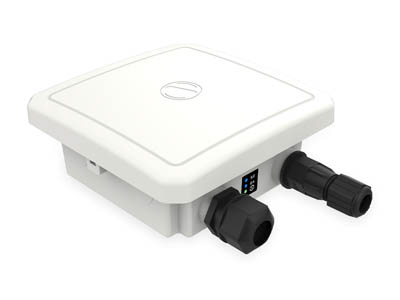

Introducing the ion4xe - Wi-Fi 6 Outdoor Access Point, a cutting-edge solution for seamless and efficient wireless connectivity in high foot traffic areas. This product is available in multiple variants, allowing for the connection of external antennas via SMA or N connectors. It supports 802.11 a/b/g/n/ac/ac Wave2/ax and offers an impressive 1.78 Gbps aggregate throughput.

The ion4xe is equipped with 2X2:2 MU-MIMO technology, ensuring bi-directional, multi-user data transfer for enhanced spectral efficiency. It is IP67 certified, guaranteeing durability and resistance to harsh outdoor conditions. With up to 30 dBm transmit power and the capacity to support 1024 concurrent clients, this access point is perfect for outdoor stadiums, industrial belts, public venues, and transportation hubs like airports and railways.

Managed through a cloud-based platform, the ion4xe offers higher efficiency and security. Its dual-band radio offers a peak data rate of up to 1.78 Gbps, ensuring fast and reliable connectivity. The EasyMesh Networking feature allows for easy expansion and management of your network, while the flexibility to add antennas ensures optimal coverage.

The ion4xe also features traffic shaping and application-aware capabilities, allowing for efficient bandwidth utilization and prioritization of critical applications. Plus, it offers higher security and guest access, ensuring a safe and user-friendly experience for all users.

Experience the future of outdoor wireless connectivity with the ion4xe - Wi-Fi 6 Outdoor Access Points.

ion4xe - Wi-Fi 6 Outdoor APs

Features & Benefits

  • Multiple variants available for connecting external antenna via SMA or N connectors
  • 802.11 a/b/g/n/ac/ac Wave2/ax
  • 1.78 Gbps aggregate throughput
  • 2X2:2 MU-MIMO
  • IP67 Certified
  • Up to 30 dBm transmit power
  • 1024 concurrent client support
  • Cloud Managed Access Point
  • Higher Efficiency
  • Dual-Band Radio Offering Peak Data Rate up to 1.78 Gbps
  • Bi-Directional, Multi User-Multiple Input Multiple Output (MU-MIMO)
  • Enhanced Spectral Efficiency
  • EasyMesh Networking
  • Flexibility to Add Antennas
  • Traffic Shaping & Application-Aware
  • Higher Security & Guest Access

Technical Specifications

Antenna TypeExternal
Max Transmit Power30dBm
Maximum Concurrent User Support1024
Peak Throughput1.78 Gbps
TechnologyWi-Fi 6
WPA3 SecurityYes
