ion8xe_T - Wi-Fi 7 Outdoor APs
IO by HFCL
ion8xe_T

ion8xe_T - Wi-Fi 7 Outdoor APs

Manufacturer: IO by HFCL

Datasheet: ion8xe_T

Delivers to:

Delivers to Europe.

Contact us for volume discounts.

Status:

Authorised Distributors
Authorized Distributor
Stock
Stock Availability
Bulk Discounts
Volume Discounts
Support
Technical Support
Warranty
Includes Warranty

Product Detail

Introducing the ion8xe_T - Wi-Fi 7 Outdoor Access Point, the world's first open-source Wi-Fi 7 Access Point designed for high-density outdoor environments requiring low latency. This revolutionary product offers a concurrent dual-band data rate of up to 5.95 Gbps, supporting 1024 concurrent users, making it ideal for large enterprises, shopping malls, and applications in autonomous & connected vehicles, as well as AR/VR.

The ion8xe_T provides deployment flexibility with multiple variants, including the option for external antennas using N-connectors on the side or top. It also supports access to a 160 MHz channel in the 5GHz Band, enhanced security features such as WPA3 security support, and 1024 QAM.

This outdoor AP is equipped with advanced features like non-Wi-Fi interference detection and avoidance, ATPC, and coverage hole detection and correction. It also supports coordinated bi-directional multi-user-multi input multi output (MU-MIMO), multi-link operation (MLO), preamble puncturing, and multiple resource unit (Multi-RU) operation.

The ion8xe_T offers better mesh networking with a dual radio offering a peak data rate of up to 5.95 Gbps. It is traffic share and application aware, providing centralized control for seamless operation. Encased in a rugged enclosure, it offers enhanced protection against harsh outdoor conditions.

Experience the future of outdoor connectivity with the ion8xe_T - Wi-Fi 7 Outdoor Access Points.

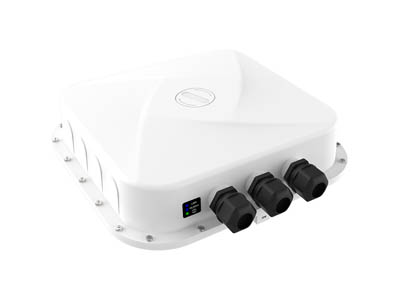

ion8xe_T - Wi-Fi 7 Outdoor APs
https://www.epsglobal.com/Media-Library/EPSGlobal/Products/files/hfcl/ion8xe_T.jpg?ext=.jpg&maxsidesize=400
ion8xe_T
New
ion8xe_T
0.00
IO by HFCL
https://www.epsglobal.com/getmetafile/e01c3bd6-3939-48ed-99eb-3b73e59a69c8

Features & Benefits

  • World’s First Open source Wi-Fi 7 Access Point
  • Concurrent Dual-Band Offering Data Rate up to 5.95 Gbps
  • Provides deployment flexibility through Multiple Variants - Option for external antennas using N-connectors on Side or on Top
  • Supports 1024 concurrent users
  • Access to 160 MHz channel in the 5GHz Band
  • Enhanced security features such as WPA3 security support
  • Supports 1024 QAM
  • Support for advanced features like non-Wi-Fi interference detection and avoidance, ATPC, coverage hole detection and correction
  • Better Mesh Networking
  • Dual radio offering peak data rate of up to 5.95 Gbps
  • Coordinated Bi-Directional Multi User-Multi Input Multi Output (MU-MIMO)
  • Multi-Link Operation (MLO)
  • Preamble Puncturing and Multiple Resource Unit (Multi-RU) operation
  • Traffic Share and application aware
  • Centralized control
  • Rugged enclosure for enhanced protection

Technical Specifications

Antenna TypeIntegrated
EasyMeshYes
IndoorYes
Max Transmit Power28 dBm
Maximum Concurrent User Support1024
MU-MIMO4x4:4
Peak ThroughputUp to 5.95 Gbps
TechnologyWi-Fi 6
WPA2 SecurityYes
WPA3 SecurityYes
-->

Manufacturer

IO by HFCL

IO by HFCL's comprehensive set of products include a full range of Indoor and Outdoor WiFi5 and WiFi6 AccessPoints, P2P and P2mP Unlicensed Band Radios (UBR), Switches and a massively scalable Cloud Network Management System. The entire portfolio has been conceptualized, designed, developed and manufactured in India complying with global specifications with a sole objective to provide ubiquitous connectivity by delivering affordable, interoperable and high-quality wireless Access Solutions for all.
