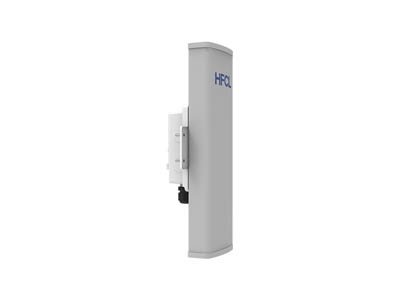

ion4xl2_BTS_d - High Capacity P2MP UBR

ion4xl2_BTS_d - High Capacity P2MP UBR

Manufacturer: IO by HFCL

Datasheet: ion4xl2_BTS_d

Delivers to:

Delivers to Europe.

Contact us for volume discounts.


Authorised Distributors
Authorized Distributor
Stock Availability
Bulk Discounts
Volume Discounts
Technical Support
Includes Warranty

Product Detail

Introducing the ion4xl2_BTS_d - High Capacity P2MP UBR, a master side device designed for high-capacity enterprise, electricity distribution grids, power plants, ISPs, TSPs, and smart cities. This high-capacity, feature-rich device operates on a 5GHz unlicensed band radio with a 1GbE port, offering a peak aggregated throughput of 1 Gbps at a channel bandwidth of 80MHz.

The ion4xl2_BTS_d supports up to 16 CPEs at a time, providing flexibility for both 2+0 and 1+1 deployment. It features 2x2 MIMO operation and multiple variants for diverse use cases. The high precision GPS sync technology allows for the reuse of the same channel at collocated sites, while the high transit power support of up to 30 dBm ensures robust performance.

Ease of installation is guaranteed with this device, along with advanced level features such as LED & buzzer support. The hardware is rugged with an IP67 rating, ensuring durability and resistance to harsh conditions. Adaptive RF technology, beamforming, and beam-steering are incorporated to enhance performance and efficiency.

The ion4xl2_BTS_d also prioritizes security with built-in features to protect your network. Remote management capabilities allow for convenient control and monitoring of the device. Experience the power and versatility of the ion4xl2_BTS_d - High Capacity P2MP UBR, designed to meet your high-capacity needs.

ion4xl2_BTS_d - High Capacity P2MP UBR

Features & Benefits

  • 5GHz Unlicensed Band Radio with 1GbE Port
  • Peak aggregated throughput of 1 Gbps at channel bandwidth of 80MHz
  • High capacity, feature rich with 2x2 MIMO operation
  • Multiple variants for diverse use cases
  • Master BTS supports up to 16 CPEs at a time
  • Flexibility for both 2+0 and 1+1 deployment
  • High precision GPS sync technology allows reuse of same channel at collocated sites
  • High Transit Power support of up to 30 dBm
  • Ease of Installation
  • Advanced Level Features
  • LED & Buzzer Support
  • Rugged Hardware with IP67 rating
  • Adaptive RF Technology
  • Beamforming and Beam-Steering
  • Security
  • Remote Management

Technical Specifications

Max Transmit Power30dBm
Peak ThroughputUp to 1 Gbps
TechnologyHigh Capacity P2P UBR
WPA2 SecurityYes
WPA3 SecurityYes



IO by HFCL's comprehensive set of products include a full range of Indoor and Outdoor WiFi5 and WiFi6 AccessPoints, P2P and P2mP Unlicensed Band Radios (UBR), Switches and a massively scalable Cloud Network Management System. The entire portfolio has been conceptualized, designed, developed and manufactured in India complying with global specifications with a sole objective to provide ubiquitous connectivity by delivering affordable, interoperable and high-quality wireless Access Solutions for all.
