home products Wireless P2P P2P ion4xl3_d - High Capacity P2P UBR

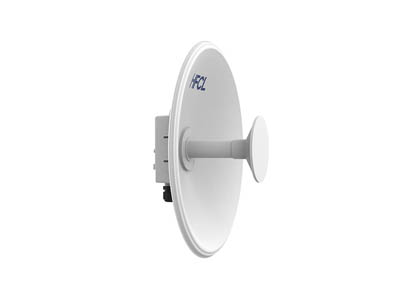

ion4xl3_d - High Capacity P2P UBR

ion4xl3_d - High Capacity P2P UBR

Manufacturer: IO by HFCL

Datasheet: ion4xl3_d

Delivers to:

Delivers to Europe.

Contact us for volume discounts.


Authorised Distributors
Authorized Distributor
Stock Availability
Bulk Discounts
Volume Discounts
Technical Support
Includes Warranty

Product Detail

Introducing the ion4xl3_d - High Capacity P2P UBR, a cutting-edge product in the high-capacity P2P UBR category. This device operates on a 5GHz Unlicensed Band Radio with a 1GbE Port, delivering a peak aggregated throughput of 1 Gbps at a channel bandwidth of 80MHz. It is high capacity and feature-rich with 2x2 MIMO operation, offering multiple variants for diverse use cases.

The ion4xl3_d provides flexibility for both 2+0 and 1+1 deployment, making it a versatile choice for various applications. Its high precision GPS sync technology allows for the reuse of the same channel at collocated sites, while its high transit power support of up to 30 dBm ensures robust performance.

This product is ideal for medium and high-capacity enterprises, electricity distribution grids, power plants, ISPs and TSPs, and smart cities. It is designed for ease of installation and comes with advanced level features, including LED & buzzer support. The ion4xl3_d is built to last with rugged hardware that has an IP67 rating, ensuring it can withstand harsh conditions.

The ion4xl3_d also features adaptive RF technology, beamforming, and beam-steering for optimal performance. It offers security features to protect your data and allows for remote management for convenience and efficiency. Experience the power and versatility of the ion4xl3_d - High Capacity P2P UBR today.

ion4xl3_d - High Capacity P2P UBR

Features & Benefits

  • 5GHz Unlicensed Band Radio with 1GbE Port
  • Peak aggregated throughput of 1 Gbps at channel bandwidth of 80MHz
  • High capacity, feature rich with 2x2 MIMO operation
  • Multiple variants for diverse use cases
  • Flexibility for both 2+0 and 1+1 deployment
  • High precision GPS sync technology allows reuse of same channel at collocated sites
  • High Transit Power support of up to 30 dBm
  • Ease of Installation
  • Advanced Level Features
  • LED & Buzzer Support
  • Rugged Hardware with IP67 rating
  • Adaptive RF Technology
  • Beamforming and Beam-Steering
  • Security
  • Remote Management

Technical Specifications

Max Transmit Power30dBm
Peak ThroughputUp to 1 Gbps
TechnologyHigh Capacity P2P UBR
WPA2 SecurityYes
WPA3 SecurityYes



IO by HFCL's comprehensive set of products include a full range of Indoor and Outdoor WiFi5 and WiFi6 AccessPoints, P2P and P2mP Unlicensed Band Radios (UBR), Switches and a massively scalable Cloud Network Management System. The entire portfolio has been conceptualized, designed, developed and manufactured in India complying with global specifications with a sole objective to provide ubiquitous connectivity by delivering affordable, interoperable and high-quality wireless Access Solutions for all.
