WaveAnalyzer 400A
WaveAnalyzer 400A: Optical Spectrum Analyzer
WaveAnalyzer 400A

Quantity breaks available. View Pricing Table

Pricing Table

See Product Detail
Wavelength :
  • Optical system test
  • DWDM testing
  • Channel power and OSNR testing
  • Production floor: High throughput component test
Product Highlights :
  • Product versions available for
    – C-band
    – C+L band
  • Resolution bandwidth: <500 MHz
  • Fast: 2 scans / second
  • Dual Polarization detection
  • Ethernet Interface
  • Internal WebServer
  • Compact, no moving parts
Quick Quote
Learn More
WaveAnalyzer 400A: Optical Spectrum Analyzer
https://www.epsglobal.com/getmetafile/1a8f0ef6-87a2-42b2-91a7-ad5ca700bcdb/waveanalyzer-400a?maxsidesize=400
<p>The WaveAnalyzer 400A is a compact Optical Spectrum Analyzer for testing optical signals in the C- and in the C+L band of optical communications. The instrument has been designed for Research & Development purposes as well as for Production Applications.</p>
WaveAnalyzer 400A
WaveAnalyzer 400A
Coherent
https://www.epsglobal.com/getmetafile/94cfad1c-656d-435e-8625-94600a97706c/Coherent
WaveAnalyzer 200A
WaveAnalyzer 200A Portable Optical Spectrum Analyzer
WaveAnalyzer 200A

Quantity breaks available. View Pricing Table

Pricing Table

25-99
$0.00
100-499
$0.00
500-999
$0.00
1000+
$0.00
See Product Detail
Product Highlights :
  • Full C-band coverage
  • Resolution bandwidth: 1.75 GHz
  • Fast: >1 updates per second
  • Battery operated
  • Remote control via Ethernet
  • No moving parts
Application :
  • System turn up and trouble shooting
  • DWDM testing
  • Channel power and Optical Signal to Noise Ratio (OSNR) testing
  • Channel equalizing
  • Lab, network and data center
Quick Quote
Learn More
WaveAnalyzer 200A Portable Optical Spectrum Analyzer
https://www.epsglobal.com/Media-Library/EPSGlobal/Products/files/finisar/roadm-fws-optoelectronic/WaveAnalyzer-200A.jpg?ext=.jpg&maxsidesize=400
<p>The WaveAnalyzerTM 200A is a lightweight portable Optical Spectrum Analyzer covering the C-band of optical communications.</p>
WaveAnalyzer 200A
WaveAnalyzer 200A
Coherent
https://www.epsglobal.com/getmetafile/94cfad1c-656d-435e-8625-94600a97706c/Coherent
WaveAnalyzer 200B
WaveAnalyzer 200B - Portable Optical Spectrum Analyzer
WaveAnalyzer 200B

Quantity breaks available. View Pricing Table

Pricing Table

See Product Detail
Product Highlights :
  • Super C-band coverage
  • Resolution bandwidth: 650 MHz
  • Fast: 2 updates / second (typ.)
  • Battery operated
  • Remote Control via Ethernet
  • Language support (incl. Japanese and Chinese)
  • No moving parts
Application :
  • System turn up and trouble shooting
  • DWDM testing
  • Channel power and OSNR testing
  • Channel equalizing
  • Lab, network and data center
Quick Quote
Learn More
WaveAnalyzer 200B - Portable Optical Spectrum Analyzer
https://www.epsglobal.com/getmetafile/3b680eba-1185-4d8d-8a69-7ffb417803ef/waveanalyzer-200b?maxsidesize=400
The WaveAnalyzer 200B is a lightweight portable Optical SpectrumAnalyzer covering the Super C-Band (WA 200B) of opticalcommunications.
WaveAnalyzer 200B
WaveAnalyzer 200B
Coherent
https://www.epsglobal.com/getmetafile/94cfad1c-656d-435e-8625-94600a97706c/Coherent
WaveAnalyzer-1500S
WaveAnalyzer 1500S High-Resolution Optical Spectrum Analyzer
WaveAnalyzer-1500S

Quantity breaks available. View Pricing Table

Pricing Table

25-99
$0.00
100-499
$0.00
500-999
$0.00
1000+
$0.00
See Product Detail
Product Highlights :
  • High spectral resolution
  • Real time measurement
  • Update rate: 4 Hz for full C-band scan 10 Hz for scan across any 200 GHz window
  • Spurious-free Dynamic Range > 50 dB
  • Full C-band coverage
  • External Trigger
Application :
  • High-Resolution spectral analysis on optical components
  • Modulation analysis on optical signals
  • Modulator test
  • Modulator bias and polarization adjustments
  • Transceiver test
  • SMSR measurements
  • Network monitoring
Quick Quote
Learn More
WaveAnalyzer 1500S High-Resolution Optical Spectrum Analyzer
https://www.epsglobal.com/Media-Library/EPSGlobal/Products/files/finisar/roadm-fws-optoelectronic/WaveAnalyzer-1500S.jpg?ext=.jpg&maxsidesize=400
The WaveAnalyzer(TM) 1500S is an Optical Spectrum Analyzer offering very high spectral resolution in combination with a fast update rate of 4 measurements per second across the entire C-band or 10 Hz across any 200 GHz window.
WaveAnalyzer-1500S
WaveAnalyzer-1500S
Coherent
https://www.epsglobal.com/getmetafile/94cfad1c-656d-435e-8625-94600a97706c/Coherent
WaveAnalyzer 1500B
WaveAnalyzer 1500B - High Resolution Optical Spectrum Analyzer with sub-pm absolute wavelength accuracy
WaveAnalyzer 1500B

Quantity breaks available. View Pricing Table

Pricing Table

See Product Detail
Product Highlights :
  • Frequency Range: 185.90 to 196.35 THz (1526.8 to 1612.6 nm)
  • Absolute Frequency Accuracy: +/- 100 MHz
  • Frequency Repeatability: +/- 40 MHz
  • Measurement Update Rate: Full C+L scan: 2 updates / s, Full C- or L-band scan: 4 updates / s, Scan across any 200 GHz window: 10 updates / s
  • Max Total Power: 23 dBm
  • Operating Temperature: 15°C to 35°C
  • Communications Interface: USB 2.0, Ethernet
  • Power Consumption: 100 V - 240 V, 20 VA
  • Size: 241 mm x 88 mm x 375.5 mm
  • Weight: < 4.5 kg
Application :
  • High spectral resolution
  • Real time measurement
  • Instrument versions for C-band and for L-band available
  • Update rate: 4 Hz for full C- or L-band scan, 10 Hz for scan across any 200 GHz window
  • Spurious-free dynamic range > 50 dB
  • External trigger
  • Internal web server
  • C+L Band coverage in one instrument
  • Absolute Frequency accuracy of 100 MHz
  • Detachable sub front-panel for easy connector cleaning
Quick Quote
Learn More

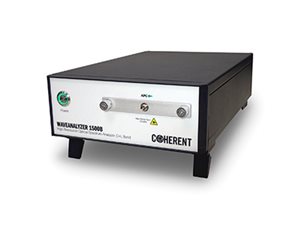

WaveAnalyzer 1500B - High Resolution Optical Spectrum Analyzer with sub-pm absolute wavelength accuracy
https://www.epsglobal.com/getmetafile/817ddb2e-f8e7-4c6f-b17a-9bf31da7252e/waveanalyzer-1500b?maxsidesize=400
The new WaveAnalyzer 1500B has been optimized for transceiver test applications. It includes a frequency reference unit which ensures an absolute frequency accuracy of better than 100 MHz (which is about 0.8 pm). Both, the C and the L Band of optical communications are covered in a single unit in a seamless way. The instrument provides measurement update rates of up to 10 measurement sweeps per second.
WaveAnalyzer 1500B
WaveAnalyzer 1500B
Coherent
https://www.epsglobal.com/getmetafile/94cfad1c-656d-435e-8625-94600a97706c/Coherent
WaveAnalyzer-100S
WaveAnalyzer 100S Compact Optical Spectrum Analyzer
WaveAnalyzer-100S

Quantity breaks available. View Pricing Table

Pricing Table

25-99
$0.00
100-499
$0.00
500-999
$0.00
1000+
$0.00
See Product Detail
Product Highlights :
  • Full C-band coverage
  • Resolution bandwidth: 1.8 GHz (about 14 pm)
  • Compact: 108 x 163 x 26 mm3
  • Fast: 2 updates per second
Application :
  • Spectral analysis in system test
  • Gain equalization
  • Optical Signal to Noise Ratio (OSNR) measurement
  • WDM analysis
Quick Quote
Learn More
WaveAnalyzer 100S Compact Optical Spectrum Analyzer
https://www.epsglobal.com/Media-Library/EPSGlobal/Products/files/finisar/roadm-fws-optoelectronic/WaveAnalyzer-100S.jpg?ext=.jpg&maxsidesize=400
The WaveAnalyzer 100S Compact Optical Spectrum Analyzer is a small, lightweight instrument which has been designed for spectral measurements on advanced optical communication systems in R&D and manufacturing.
WaveAnalyzer-100S
WaveAnalyzer-100S
Coherent
https://www.epsglobal.com/getmetafile/94cfad1c-656d-435e-8625-94600a97706c/Coherent
