home products Optical Transceivers OSFP Transceivers 800G OSFP Transceivers from Coherent 800G (2x 400 DR4) OSFP Optical Transceiver
800G (2x 400 DR4) OSFP Optical Transceiver
Coherent | Finisar
FTCE4517E1PxA

800G (2x 400 DR4) OSFP Optical Transceiver

Manufacturer: Coherent | Finisar

Datasheet: FTCE4517E1PxA

Delivers to:

Delivers to Europe.

Contact us for volume discounts.

Status:

Authorised Distributors
Authorized Distributor
Stock
Stock Availability
Bulk Discounts
Volume Discounts
Support
Technical Support
Warranty
Includes Warranty

Product Detail

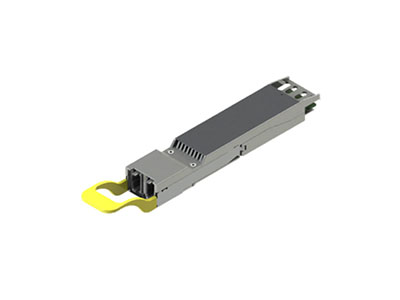

The FTCE4517E1PxA (2x DR4) OSFP transceiver modules are engineered for utilization in (2x 400) Gigabit Ethernet connections over a maximum of 500m of single mode fiber. These modules adhere to the OSFP MSA, IEEE 802.3bs, and IEEE P802.3ck standards. Digital diagnostic features can be accessed through the I2C interface, as outlined by the OSFP MSA.

800G (2x 400 DR4) OSFP Optical Transceiver
https://www.epsglobal.com/getmetafile/aebbcd6d-2e6b-4834-9d74-a9dff0444b74/FTCE4517E1PxA?maxsidesize=400
FTCE4517E1PxA (2x DR4) OSFP transceivers are designed for (2x 400) Gigabit Ethernet links on up to 500m of single mode fiber, compliant with OSFP MSA, IEEE 802.3bs and IEEE P802.3ck standards.
FTCE4517E1PxA
New
FTCE4517E1PxA
0.00
Coherent | Finisar
https://www.epsglobal.com/getmetafile/94cfad1c-656d-435e-8625-94600a97706c

Features & Benefits

  • Hot-pluggable Type 2 OSFP form factor
  • I2C management interface
  • Supports 850 Gb/s aggregate bit rate
  • Power dissipation
  • RoHS-6 compliant
  • Case temperature range of 20°C to 60°C (limited temp) or 0°C to 70°C (C-temp)
  • Single 3.3V power supply
  • Aligned with IEEE 802.3bs
  • 8x100G PAM4 retimed 106.25 Gb/s PAM4 electrical interface aligned to IEEE 802.3ck
  • Dual MPO-12, APC receptacles

Technical Specifications

ConnectorDual MPO 12
Data Rate (max)850 Gb/s
DiagnosticsDigital
Distance500 m
High End Case Temperature (°C)70
Low End Case Temperature (°C)0
Protocol800G Ethernet Compatible, IB NDR
ReceiverPIN
TransmitterEML
Voltage Supply3.3
Wavelength1310nm

Resources

800G (2x 400 DR4) OSFP Optical Transceiver Datasheet
FTCE4517E1PxA Datasheet

FTCE4517E1PxA Datasheet
FTCE4517E1PxA Datasheet

2023 Optical Transceiver Guide
FTCE4517E1PxA Datasheet

800G OSFP FR4 Transceiver Demonstration
-->
