Libero SoC Design Suite is a software suite designed by Microsemi to offer high productivity with its comprehensive, easy-to-learn, easy-to-adopt development tools for 3rd and 4th Generation Microsemi FPGA devices, including Microsemi's IGLOO2, SmartFusion2, RTG4, SmartFusion, IGLOO, ProASIC3 and Fusion families.
In this blog, we will go through the steps involved in getting Libero installed on your system.
Microsemi SoC Web Portal Registration
First things first we need to get registered on the Microsemi SoC Web Portal. Here you will be able to download Libero SoC software and also be able to access FPGAs & SoCs Documents, Support Cases and Software Licenses. To register, click the link below and click New User:
Once you’re signed up, you can download Libero SoC. You can do this by clicking one of the below links, depending on your operating system.
Download Libero SoC v11.8 for Windows
Download Libero SoC v11.8 for Linux
In this post, we will be going through the installation on a Windows PC.

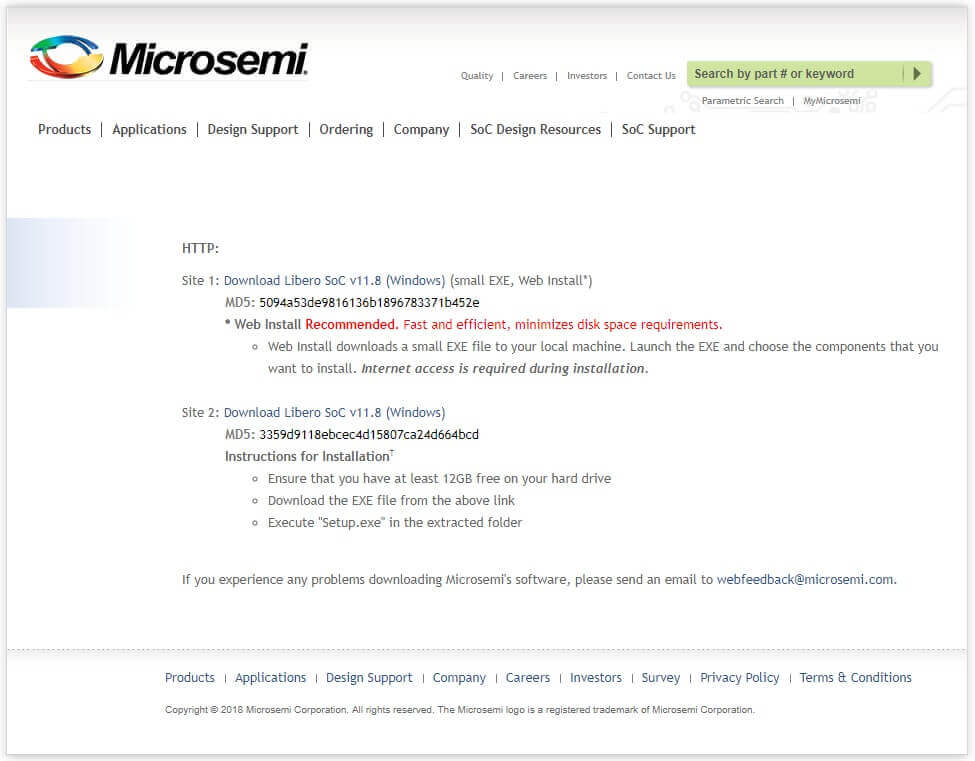

For Windows there are two downloads to choose from:
- Web Install (114 KB) - Downloads a small EXE file to your local machine. Internet access is required during installation.
- ZIP containing EXE - Ensure that you have at least 12GB free on your hard drive.
Installing Libero SoC v11.8 and all Components
If you downloaded the ZIP file extract LiberoSoC_v11.8_Win_updated.zip and execute "Setup.exe" in the extracted folder. The Installation Wizard will open.
If you chose the Web install, click setup.exe. Click Run in the Security Warning dialog box. The Installation Wizard will open.

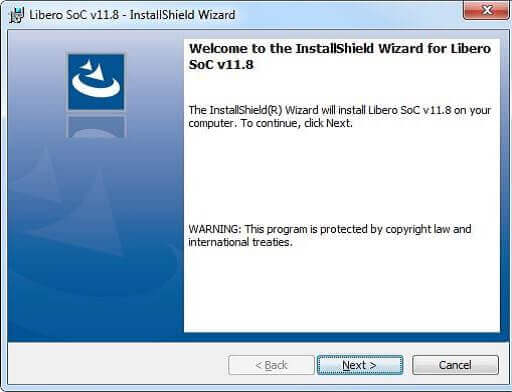

In the InstallShield Wizard you can click Next to start the installation.
The next page will show you the License Agreement. Once you accept, click Next and you will then be asked to pick a destination folder for the installation. The default location should be fine.

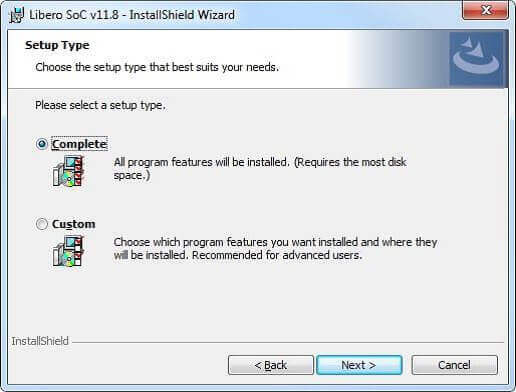

Select Complete in the Setup Type dialog box to accept the Libero license agreement then click Next.

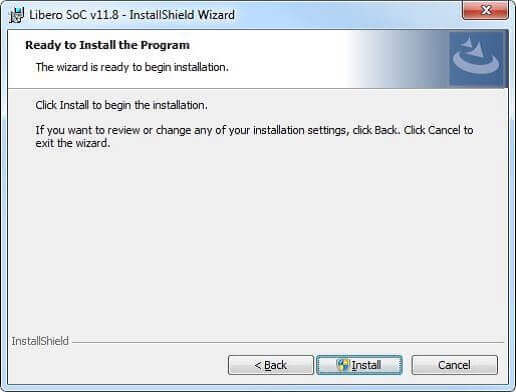

Click Install as shown below the run the installation.

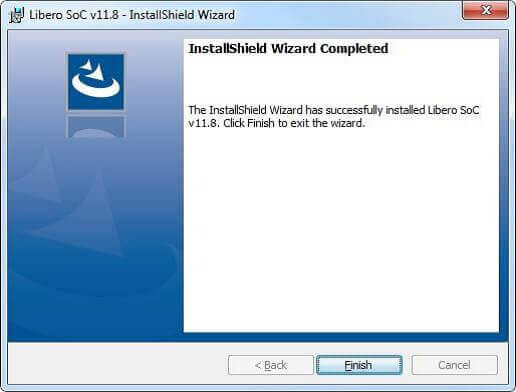

Now you can click Finish to close the InstallShield Wizard.
Downloading and Installing Libero SoC v11.8 SP3
Now we need to install Libero SoC v11.8 SP3. This is an incremental service pack and must be installed over Libero SoC v11.8. These can be downloaded below.
Download Libero SoC v11.8 SP3 for Windows
Download Libero SoC v11.8 SP3 for Linux
For Windows, download the EXE and run it.
Obtaining a license for Libero SoC
Now we need to obtain a license for Libero. Microsemi offers two types of free license, these are the Evaluation License and the Silver License.
The Evaluation License is a free license which is valid for 60 days. It supports mixed language simulation without programming, program generation or debug features.
The Silver license is free and valid for 1 year. It supports single language simulation with programming and debug features.
More information on Libero Licensing can be found here. For this blog series, the Silver Licences will meet our requirements.

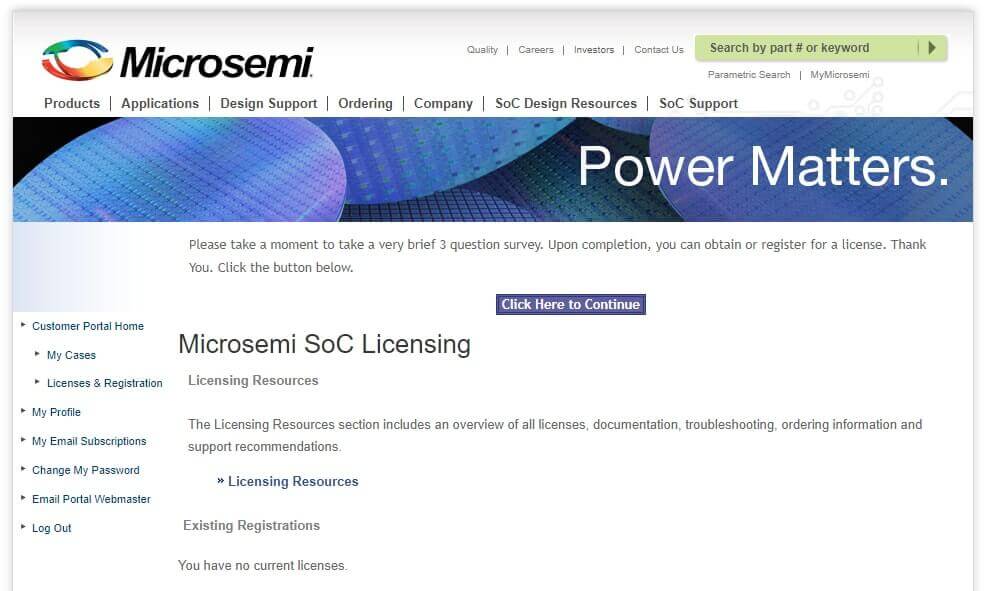

To gain access to the license request page, we must complete a short 3-question survey, click the blue button as shown below.

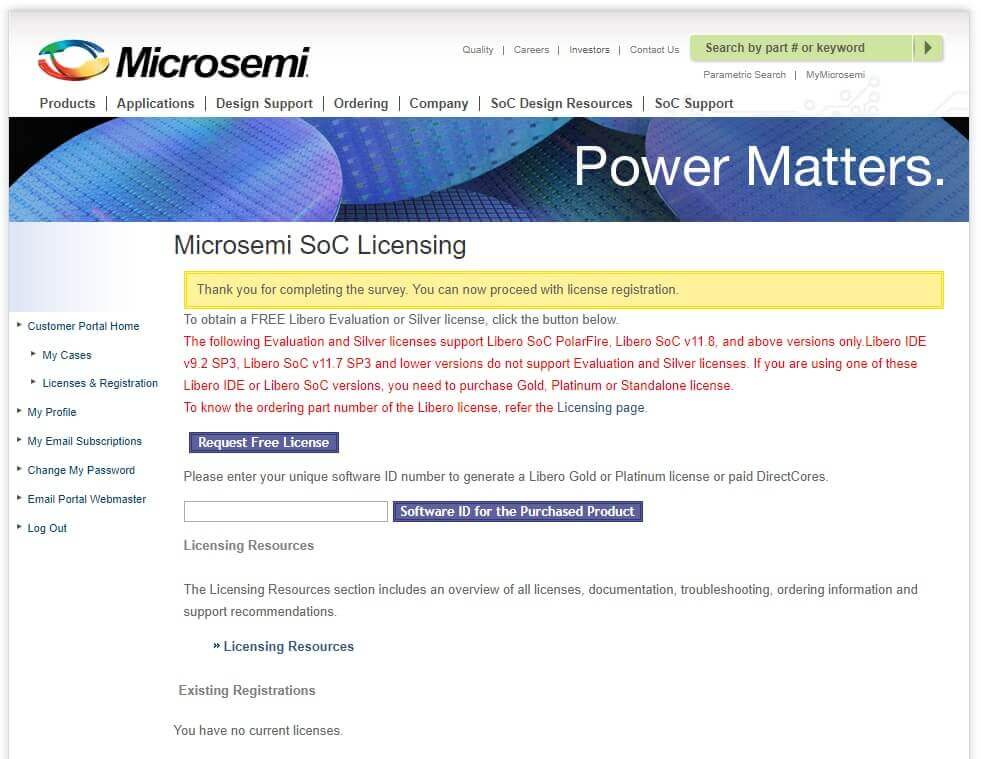

Once completed you can request a Free License as shown below:
We will pick the Libero Silver 1 Year Node-lock License for Windows. A node-locked license is locked to a specific hard disk ID or movable USB hardware key dongle. A USB dongle with the accompanying license file allows the software to operate on any PC to which the dongle is attached and the license file and software are installed.

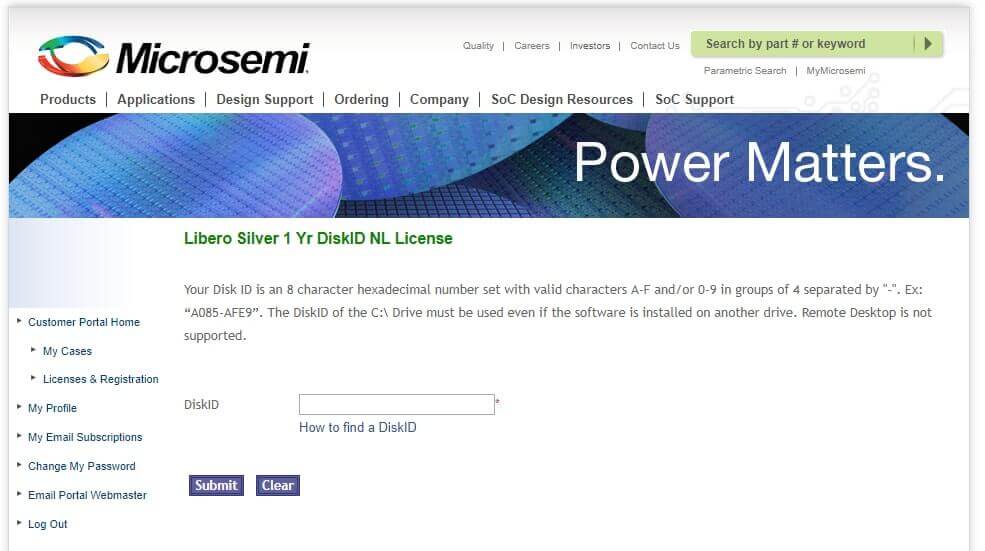

Below you can see that we’re being asked for a Disk ID. The Disk ID is the computer hard drive's serial number, also called Disk Serial Number. It is typically the C: drive in your computer.

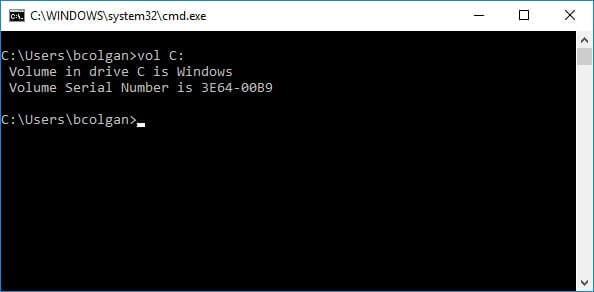

To obtain your computer's Disk ID, type the below command in Command Prompt and then enter your C: drive's Disk ID number into the license registration page window where indicated
Normally the license file (license.dat) is generated and sent to your email address in less than 30 minutes. The Libero SoC license can also be downloaded from your Microsemi SoC Portal Account.
Installing the Libero License:
The first thing we need to do with the license is download the attachment and put it on the C: drive. Create a folder named flexlm on the C: drive then save your license file in the folder. Confirm that the name of the license file is license.dat.
Next, we need to update our environment variables. This can be done from opening the Control Panel, selecting System, and the opening Advanced System Settings.

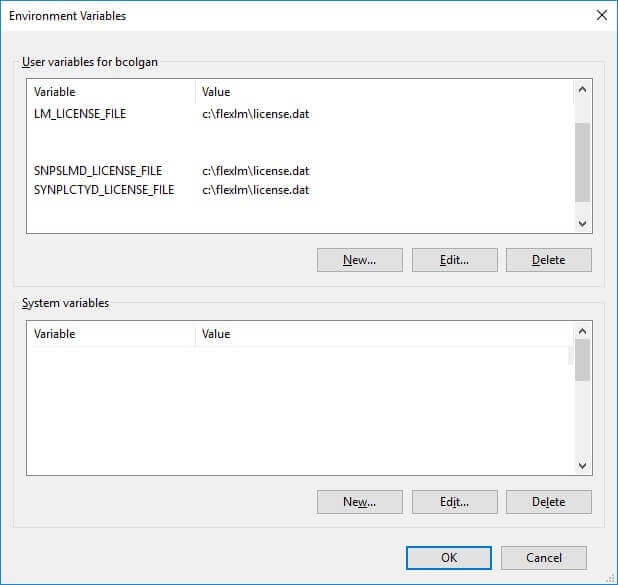

Click Environment Variables on the Advanced tab in the System Properties dialog box. Set up three new environment variables as shown below.
Downloading and Installing SoftConsole
SoftConsole is the Integrated Design Environment (IDE) for programming microcontroller sub-systems on the Microsemi Devices (e.g. hard ARM core on a SmartFusion2, soft ARM/RISC-V core on an Igloo2). It enables programmers to write, compile, and debug C (or C++) applications for their embedded system. This software can be tested by downloading the code directly to the FPGA and executing it on the actual system. It is a free tool based on Eclipse 4.7.0.
You can download SoftConsole v5.2 from the Microsemi website using the links below:
SoftConsole v5.2 Download for Windows
SoftConsole v5.2 Download for Linux
Once you’ve downloaded Microsemi-SoftConsole-v220.127.116.11-Windows-Installer.exe file to your system, execute it and follow the instructions to finish installing SoftConsole.
Congratulations! You’ve successfully installed Libero SoC and SoftConsole, wasn’t that easy? Now we just need to update our IP and Firmware catalogues.
Updating the Libero SoC IP Vault
Before we start any design, we should update our IP Vault, this is a quick and painless process.
Launch Libero SoC v11.8 SP3. Make the IP catalogue visible by selecting View > Windows > Catalog.

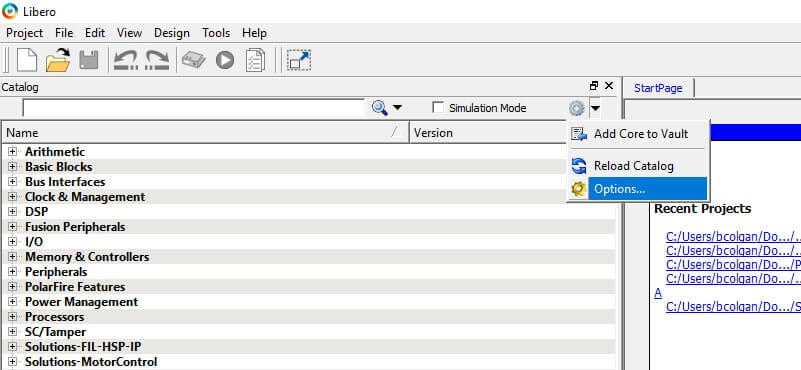

Now open Options as seen in the screenshot below.

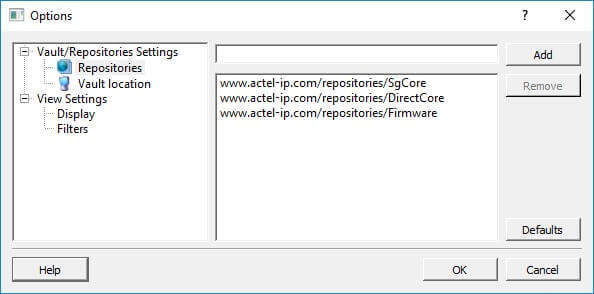

We should have 3 repositories listed, if you don’t click Defaults and they should update to the ones listed below. In case you need to type them in directly I’ve pasted them here:
Click OK to close the Options dialog box and have a look for the message “New cores are available” at the bottom of the IP catalogue window. Click “Download them now!” to download the cores.
Updating the Firmware Catalog Vault

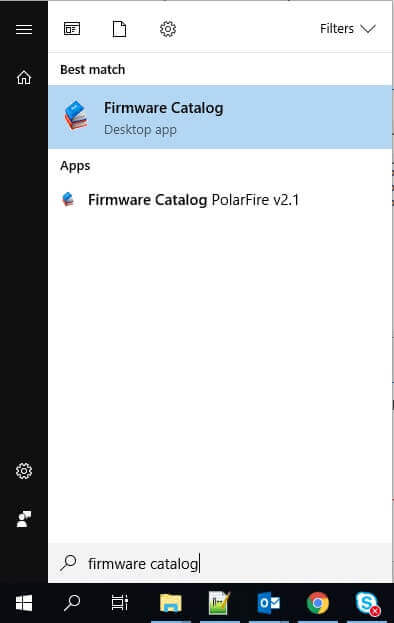

We’re almost done! Last step is to update the firmware catalogue. You can open Firmware Catalog directly from the Start bar.

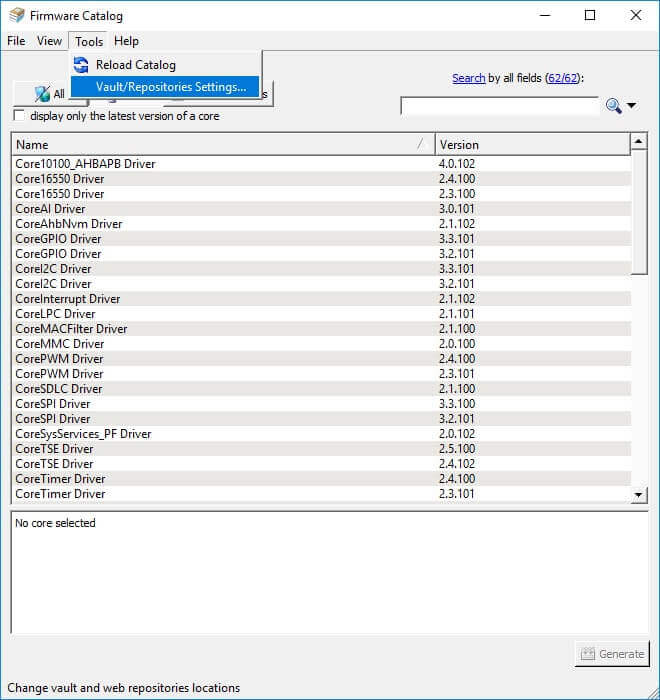

Once you’ve opened the Firmware Catalog, we’re going to open the Vault/Repositories Settings as shown below.
Click Defaults. Confirm that the following repository appears. Click the Defaults button if the repository field is blank.
At the bottom of the Firmware Catalog dialog will show “New cores are available for download”.
Click on Download them now to download all the most recent drivers for peripherals including Sample code and CMSIS compliant HAL etc.
That’s it! Now you’re ready to get designing, in the next post we will be doing a walkthrough of the Libero SoC Design Flow.
