40G Ethernet LM4 1km Universal Duplex Single Mode and Multimode Gen2 QSFP+ Transceiver
Coherent
FTL4C3QE2C

40G Ethernet LM4 1km Universal Duplex Single Mode and Multimode Gen2 QSFP+ Transceiver

Manufacturer: Coherent

Datasheet: FTL4C3QE2C

Delivers to:

Delivers to Europe.

Contact us for volume discounts.

Status:

Authorised Distributors
Authorized Distributor
Stock
Stock Availability
Bulk Discounts
Volume Discounts
Support
Technical Support
Warranty
Includes Warranty

Product Detail

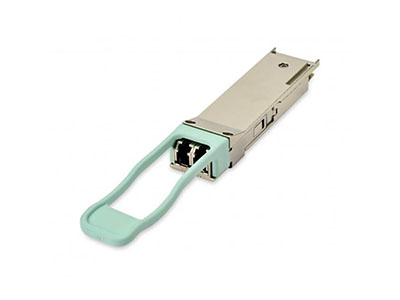

FTL4C3QE2C QSFP+ transceiver modules are designed for use in 40 Gigabit Ethernet links over duplex multimode or single mode fiber. They are compliant with the QSFP+ MSA and represent a multimode adaptation of IEEE 802.3ba 40GBASE-LR4 referred to as LM4. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

40G Ethernet LM4 1km Universal Duplex Single Mode and Multimode Gen2 QSFP+ Transceiver
https://www.epsglobal.com/getmetafile/cff8348e-9009-4921-ac14-bbdd6d7bf3e9/FTL4C3QE2C?maxsidesize=400
FTL4C3QE2C
New
FTL4C3QE2C
0.00
Coherent
https://www.epsglobal.com/getmetafile/94cfad1c-656d-435e-8625-94600a97706c

Features & Benefits

  • Operates over duplex multimode and single mode fiber with dual LC receptacles
  • Supports 41.2 Gb/s aggregate bit rate
  • Power dissipation
  • Commercial operating case temperature range 0°C to 70°C
  • Maximum link length of 140m on OM3, 160m on OM4, and 1km on SMF
  • Uncooled 4x10Gb/s CWDM transmitter
  • XLPPI electrical interface
  • Built-in digital diagnostic functions, including Tx/Rx power monitoring
  • RoHS compliant

Technical Specifications

ConnectorLC
Data Rate (max)41.2 Gb/s
DiagnosticsN/A
Distance1 km
Form FactorQSFP+
High End Case Temperature (°C)70
Low End Case Temperature (°C)0
Protocol40G Ethernet Compliant
ReceiverPIN
Transmitter4x CWDM DFB Laser
Voltage Supply3.3
Wavelength1310nm Band
-->
