BPDV21x0R
43 GHz Balanced High-speed Photodetector
BPDV21x0R

Quantity breaks available. View Pricing Table

Pricing Table

25-99
$0.00
100-499
$0.00
500-999
$0.00
1000+
$0.00
See Product Detail
Wavelength :
1550nm
Data Rate :
40 Gbps
Product Highlights :
  • 43 GHz typical bandwidth with flat response
Application :
  • 43Gb/s coherent communication systems
  • Advanced Test & Measurement systems
  • High-speed optical sensing
Quick Quote
Learn More
43 GHz Balanced High-speed Photodetector
https://www.epsglobal.com/getmetafile/65e42de1-4368-4d1a-ab78-184906cf7a09/bpdv21x0r?maxsidesize=400
The BPDV2150R balanced photodetector consists of two 50 GHz waveguide-integrated photodiodes on one single chip.
BPDV21x0R
BPDV21x0R
Coherent | Finisar
https://www.epsglobal.com/getmetafile/94cfad1c-656d-435e-8625-94600a97706c/Coherent | Finisar
CXPDV2xx0
35 GHz Single Photodiode
CXPDV2xx0

Quantity breaks available. View Pricing Table

Pricing Table

See Product Detail
Product Highlights :
  • High 3 dB bandwidth of 35 GHz
  • Optical window at 1310 and 1550 nm
  • Excellent linearity
  • High responsivity of ≥0.5 A/W
  • Low PDL of ≤0.5 dB
  • Superior flatness
Application :
  • Optical communications components
  • Advanced component R&D
Quick Quote
Learn More
35 GHz Single Photodiode
https://www.epsglobal.com/getmetafile/10ef7e28-dcca-4cf0-a4a7-1b6c7b2927f1/cxpdv2xx0?maxsidesize=400
<p>The CXPDV2120 is an optimized photodiode, operating at the C- and O-bands. The chip provides a low PDL and comes with integrated chip biasing.</p>
CXPDV2xx0
CXPDV2xx0
Coherent | Finisar
https://www.epsglobal.com/getmetafile/94cfad1c-656d-435e-8625-94600a97706c/Coherent | Finisar
XPDV3120R
70 GHz DWDM Single High-speed Photodetector
XPDV3120R

Quantity breaks available. View Pricing Table

Pricing Table

25-99
$0.00
100-499
$0.00
500-999
$0.00
1000+
$0.00
See Product Detail
Wavelength :
1550nm
Data Rate :
≥100 Gbps
Product Highlights :
  • 70GHz typical bandwidth with flat response
  • Excellent pulse behavior
  • High responsivity
  • Unique on-chip integrate bias network
Application :
  • Communication systems up to 600Gb/s
  • Microwave photonics up to 60GHz
  • High-speed Lightwave characterization
  • Test & Measurement equipment
Quick Quote
Learn More

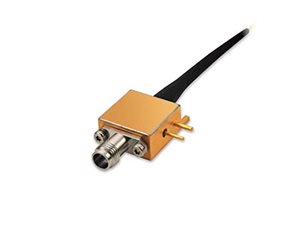

70 GHz DWDM Single High-speed Photodetector
https://www.epsglobal.com/getmetafile/8058abf9-c6e9-42b1-8682-fca705b6953c/xpdv3120r?maxsidesize=400
The XPDV3120R comprises a single 75 GHz waveguide-integrated photodiode, which shows an extremely flat frequency response, both in power and in phase.
XPDV3120R
XPDV3120R
Coherent | Finisar
https://www.epsglobal.com/getmetafile/94cfad1c-656d-435e-8625-94600a97706c/Coherent | Finisar
XPDV21x0R(A)
50 GHz DWDM Single High-speed Photodetector
XPDV21x0R(A)

Quantity breaks available. View Pricing Table

Pricing Table

25-99
$0.00
100-499
$0.00
500-999
$0.00
1000+
$0.00
See Product Detail
Wavelength :
1550nm
Data Rate :
40 Gbps
Product Highlights :
  • High bandwidth combined with flat response
Application :
  • DWDM
  • Communication systems at 40 Gb/s (OC-768) and beyond
  • Microwave photonics of up to 60 GHz
  • High-speed lightwave characterization
Quick Quote
Learn More
50 GHz DWDM Single High-speed Photodetector
https://www.epsglobal.com/getmetafile/bdf4c9ee-61b7-48a5-a6a9-aa3af3635d98/xpdv21x0r-a?maxsidesize=400
The XPDV photodetector consists of a well-established, waveguide-integrated single photodiode chip, designed to exhibit an optimized frequency response in both power and phase.
XPDV21x0R(A)
XPDV21x0R(A)
Coherent | Finisar
https://www.epsglobal.com/getmetafile/94cfad1c-656d-435e-8625-94600a97706c/Coherent | Finisar
BPDV3120R
70 GHz Balanced High-speed Photodetector
BPDV3120R

Quantity breaks available. View Pricing Table

Pricing Table

25-99
$0.00
100-499
$0.00
500-999
$0.00
1000+
$0.00
See Product Detail
Wavelength :
1550nm
Data Rate :
100 Gbps
Product Highlights :
  • 70 GHz bandwidth guaranteed
  • Excellent uniformity of photodiodes
  • Detection of 64 Gbaud x-QAM signals
  • Integrated 50Ω termination
  • Unique on-chip integrated bias network
  • Available as dual-pair / quad-set
  • Temperature: 0°C to +75°C
  • Supply voltage: +3.3/-3.3 V
  • Transmission formats: DPSK, DP QPSK, QAM
Application :
  • DWDM
  • Next generation networks
  • Transmission systems of 400 Gb/s through 1 Tb/s
  • Coherent test and measurement systems
  • Research and development systems
Quick Quote
Learn More

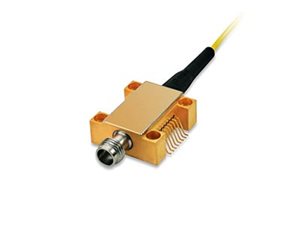

70 GHz Balanced High-speed Photodetector
https://www.epsglobal.com/getmetafile/c1545e76-5b89-4ba1-b2b6-43eb5663fae6/bpdv3120r?maxsidesize=400
The BPDV3120R balanced photodetector consists of two 75 GHz waveguide-integrated photodiodes on one single chip.
BPDV3120R
BPDV3120R
Coherent | Finisar
https://www.epsglobal.com/getmetafile/94cfad1c-656d-435e-8625-94600a97706c/Coherent | Finisar
HPDV2120R
50 GHz High-Power Photodetector
HPDV2120R

Quantity breaks available. View Pricing Table

Pricing Table

25-99
$0.00
100-499
$0.00
500-999
$0.00
1000+
$0.00
See Product Detail
Wavelength :
1550nm
Data Rate :
40 Gbps
Product Highlights :
  • 50 GHz 3 dB bandwidth
  • 3 dBm RF output power @ 50 GHz
  • 6 dBm RF output power @ 20 GHz
  • High Linearity (25 dBm OIP3 @ 40 GHz)
  • No cooling required
Application :
  • Microwave Photonics
  • Analog Photonic links
  • Radio-over-Fiber
Quick Quote
Learn More
50 GHz High-Power Photodetector
https://www.epsglobal.com/getmetafile/95911e5e-bfbd-4ac8-bac1-b931d43ad35c/hpdv2120r?maxsidesize=400
The HPDV is a compact module that is based on an advanced waveguide photodetector chip integrated with a Bias-Tee.
HPDV2120R
HPDV2120R
Coherent | Finisar
https://www.epsglobal.com/getmetafile/94cfad1c-656d-435e-8625-94600a97706c/Coherent | Finisar
VPDV2120
20 GHz Ultra-High Power Photodetector
VPDV2120

Quantity breaks available. View Pricing Table

Pricing Table

25-99
$0.00
100-499
$0.00
500-999
$0.00
1000+
$0.00
See Product Detail
Wavelength :
1550nm
Data Rate :
≥100 Gbps
Product Highlights :
  • Ultra-High RF Output Power of 22dBm @ 10GHz
  • High Linearity (OIP3 30dBm @ 10GHz)
  • High Responsivity of 0.55A/W
  • High Saturation of Photocurrent of 150mA @ 10GHz
  • No cooling required
  • Operational up to 20GHz and beyond
Application :
  • Microwave Photonics
  • Analog Photonic links
  • Radio-over-Fiber
Quick Quote
Learn More
20 GHz Ultra-High Power Photodetector
https://www.epsglobal.com/getmetafile/c9f40b18-e12c-434e-bb21-332d17f33603/vpdv2120?maxsidesize=400
The VPDV2120 is a compact module that is based on a modified uni-travelling carrier (MUTC) photodetector chip.
VPDV2120
VPDV2120
Coherent | Finisar
https://www.epsglobal.com/getmetafile/94cfad1c-656d-435e-8625-94600a97706c/Coherent | Finisar
BPDV3320R
70 GHz Dual-Window Balanced Photodetector
BPDV3320R

Quantity breaks available. View Pricing Table

Pricing Table

See Product Detail
Product Highlights :
  • 70 GHz typical bandwidth
  • Unsurpassed high-power capability
  • Detection of 64 Gbaud x-QAM signals
  • Support of 1310 nm and 1550 nm
  • Unique on-chip integrated bias network
Application :
  • Transmission systems up to 1 Tbps
  • Coherent test and measurement systems
  • Research and development systems
  • Microwave photonics
Quick Quote
Learn More
70 GHz Dual-Window Balanced Photodetector
https://www.epsglobal.com/getmetafile/07162c40-40fd-4dde-a6ab-4d881a6378dc/bpdv3320r?maxsidesize=400
<p>The BPDV3320R balanced photodetector consists of two optimized 70 GHz, waveguide-integrated photodiodes on one single chip. As a single balanced photodetector, this configuration ensures an excellent uniformity of the paired photodiodes and is biased via integrated biasing network.</p>
BPDV3320R
BPDV3320R
Coherent | Finisar
https://www.epsglobal.com/getmetafile/94cfad1c-656d-435e-8625-94600a97706c/Coherent | Finisar
XPDV3320R
70 GHz Dual Window Photodetector
XPDV3320R

Quantity breaks available. View Pricing Table

Pricing Table

See Product Detail
Product Highlights :
  • 70GHz typical electrical 3dB bandwidth
  • Excellent flat response
  • Support of 1310nm and 1550nm
  • Well matched 50Ω output
  • Unique on-chip integrate bias network
Application :
  • Communication systems up to 600Gb/s
  • High-speed Lightwave characterization
  • Microwave photonics up to 60GHz
  • Test & Measurement equipment
Quick Quote
Learn More
70 GHz Dual Window Photodetector
https://www.epsglobal.com/getmetafile/bd0c0b55-0719-4ce7-a0a3-e927f073c753/xpdv3320r?maxsidesize=400
<p>The XPDV3x20R comprises an optimized 70GHz dual window waveguide-integrated photodiode, which shows an extremely flat frequency response, both in power and in phase.</p>
XPDV3320R
XPDV3320R
Coherent | Finisar
https://www.epsglobal.com/getmetafile/94cfad1c-656d-435e-8625-94600a97706c/Coherent | Finisar
XPRV2325A
30 GHz Linear Dual-Window Photoreceiver
XPRV2325A

Quantity breaks available. View Pricing Table

Pricing Table

See Product Detail
Product Highlights :
  • Linear PIN/TIA photoreceiver module
  • 31 GHz typical bandwidth
  • Mode select and optional I2C interface
  • Adjustable conversion gain, output swing
  • RF output disable
  • SMD package with V® connector
  • AC coupled output
  • 1310 nm and 1550 nm wavelengths
Application :
  • 56 GBaud PAM4 communication systems
  • Transponder and line card designs
  • Laboratory test equipment
Quick Quote
Learn More
30 GHz Linear Dual-Window Photoreceiver
https://www.epsglobal.com/getmetafile/4c80123e-fa2e-401f-b496-d2847a7963e5/xprv2325a?maxsidesize=400
<p>The photoreceiver module XPRV2325A is a single-ended optical front end with a very flexible design. The package contains a dual-wavelength, waveguide-integrated PIN photodiode (PD) and a transimpedance amplifier (TIA) that can optionally be controlled via an I²C interface.</p>
XPRV2325A
XPRV2325A
Coherent | Finisar
https://www.epsglobal.com/getmetafile/94cfad1c-656d-435e-8625-94600a97706c/Coherent | Finisar
previous
next

Showing 10 of 25 results

Showing 1 - 10 of 25 results
